CNSH-M1(4G)

12 Great wisdom function integration

Audio and video call

High definition photography

Electronic fence

Moving trajectory

Personnel location

SOS Emergency call

Silent alarm

Hat off alarm

Drop alarm

Free background

Vital sign (optional)

AI intelligence (optional)

Technical Parameter

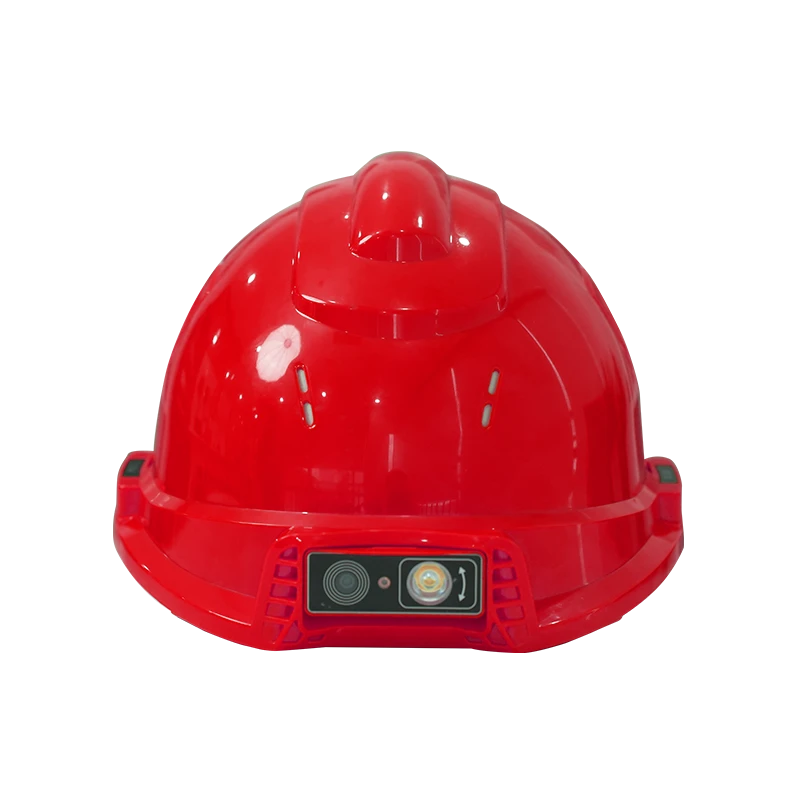

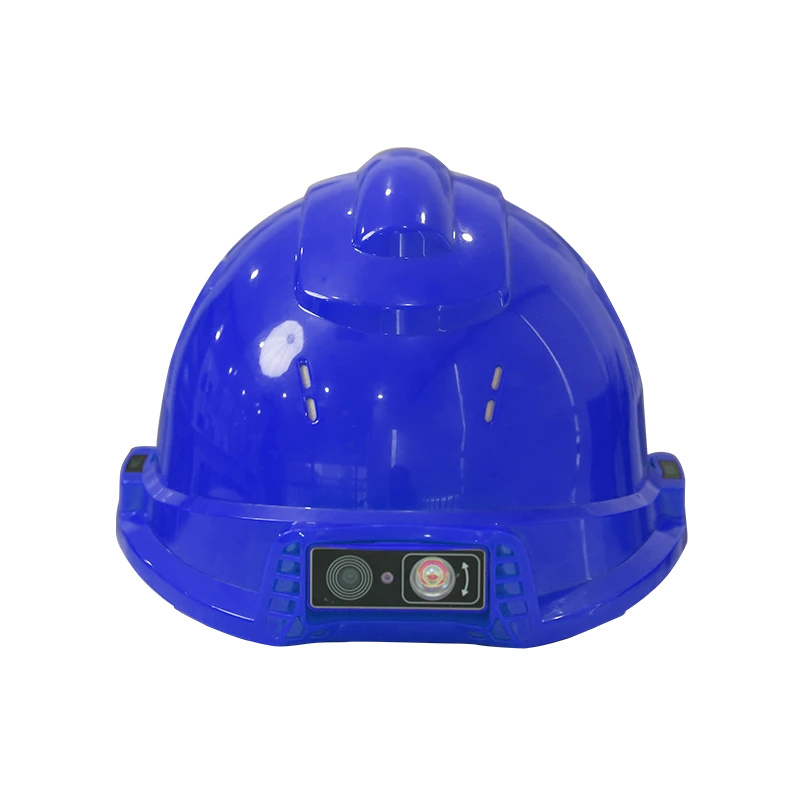

Colour	White, Red, Blue, Yellow
Material	ABS Material
Weight	650g
Dimensions	294mm×228.5mm×153.5mm (L × W × H), Meet GB/T2811-2019 standard design
Communication frequency band	LTE-FDD band B34/B38/B39/B40/B41; LTE-TDD band B1/B2/B3/B5/B7/B8; WCDMA band 2100Mhz; TD-SCDMA band B34/B39; GSM band 850/900/1800/1900MHz
Positioning	Standard: GPS, Beidou positioning; Optional: RTK, UWB
WIFI	Support(IEEE802.1a/b/g/n)
Operating temperature	-30℃~50℃
Working humidity	10%~60%
IP Level	IP66
Bluetooth	Support BT: 5.0
Bluetooth Functions	1. The helmet can be connected to Bluetooth headsets (neck type, in-ear type, hanging ear type), which can broadcast voice content and answer voice calls. 2. The helmet can scan Bluetooth beacons for positioning, support beacon fence alarm and cap local alarm.
Antenna	Standard configuration: 1 main antenna + 1 LTE diversity antenna + 1 (WIFI&BT) 2-in-1 antenna + 1 GPS ceramic antenna + 1 near-current antenna; Optional: helical antenna
Battery specification	Standard: 5000mAh battery; Other: Removable, rechargeable battery with charging indicator

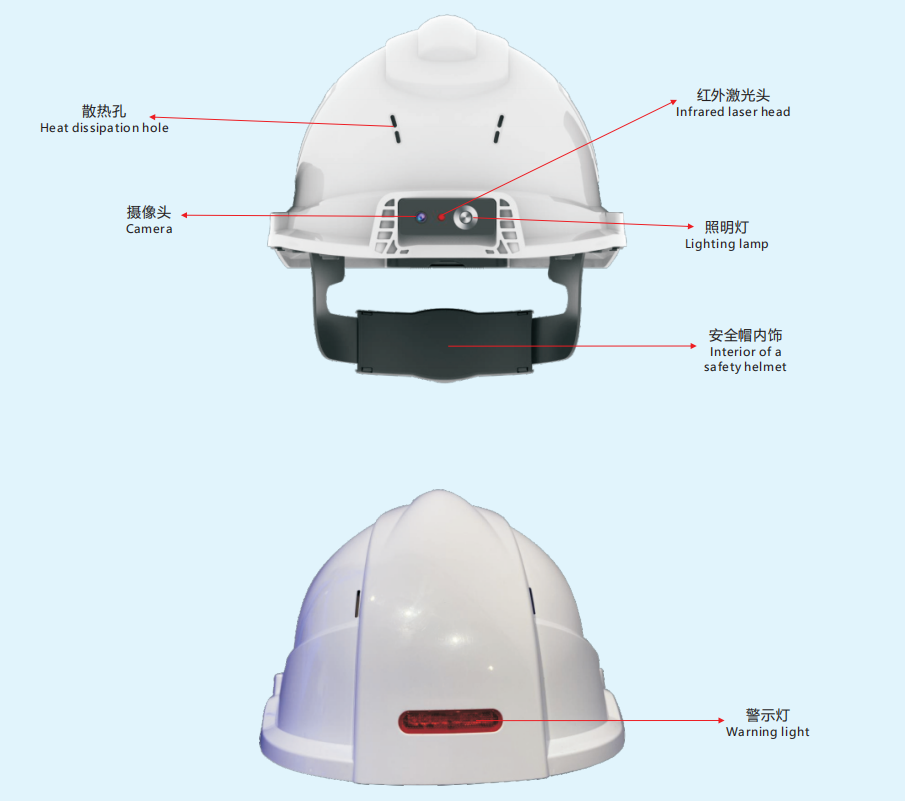

Camera	2100W pixels, support 1080P HD, background default monitoring resolution 720P. There are two angles, head up and down. Laser light to assist camera positioning
AI intelligent voice	Make emergency calls by voice, turn on and off the lights by voice control, take photos and video by voice control, switch the primary and secondary cards, query the power, turn on/off the warning light, turn on face recognition, etc.
Type-C interface	16PIN, support charging, data transmission support USB 2.0
Headphone jack (3.5mm)	Standard function 1: 3.5mm wired headset; optional function 2: Vital signs module; note: choose one of the two functions
Microphone	Type: Chip type; configuration: main MIC, sub-MIC (noise reduction), voice MIC
Speaker	Type: BOX horn; Power: 8Ohm @ 1W; Configuration: dual horn
LED Headlight	Power: Maximum support 1W; Configuration: gear adjustable, 1st 0.5W, 2nd 1W; Other: default 1
Fall prevention	Drop at 2 meters does not cause functional failure
Pilot lamp	Power on: Blue light blinking fast; Working: blue light blinking slowly; Charging: red light on; Fully charged: green light on

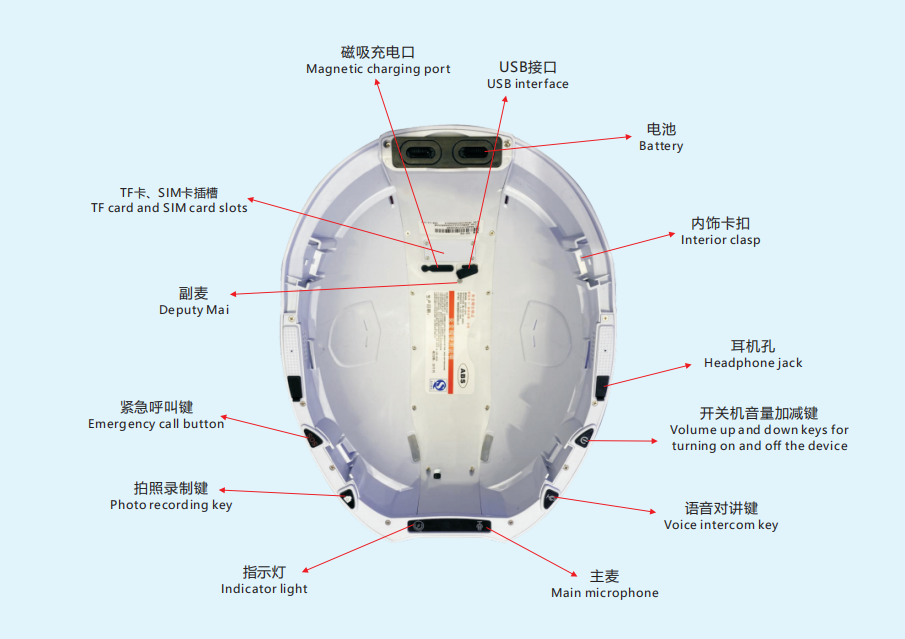

Product Usage Instructions

Name	Icon	Method	Function Description
Turn on/off the volume up/down		--	It automatically records by default upon startup and automatically overwrites in a loop
		Short press	Press the volume up or down button briefly
		Long press	Power on/off button (3 seconds)
Intercom		Short press	Press the long and short buttons to reset the height
Intercom		Long press	Long press the voice intercom
Photo button		Short press	Short press to take a photo
Photo button		Long press	Long press to turn recording on or off
Help!		Short press	Press briefly to call for help while the device is on
SIM Card slot		--	You can insert the SIM card in the direction of the icon's notch or press it briefly to pop it out
USB Interface		--	When the computer is powered on, data transfer and charging can be carried out by connecting it to the computer with a data cable
USB Interface		--	It can be charged when connected with a data cable in the off state
Indicator light	○	Blue	The blue light flashes rapidly when the device is turned on
		Blue	The blue light flashes slowly
		Red	The red light remains on constantly (Charging)
		Green	The green light is always on (Fully charged)
Rear warning light	○	Flash	Warning method
Rear warning light	○	AI call	Trigger method

Product Function

Audio and video call cluster intercom

Connect WIFI or 4G, background administrator can see the footage recorded by the recorder, and can also conduct two-way voice communication with front-line law enforcement officers.

4G/5G Smart camera helmet

Visualize front-line jobs Flexible expansion of hardware and software Travel guide scheduling Platform level management architecture

4G/5G Full Netcom

Support mobile, Unicom, telecom; Support wireless WIFI link/mobile hotspot link; Real-time video call, voice call and remote recording over the network.

5000MAH

Removable large capacity battery

Optional Function

Vital sign

Through the bracelet, the heart rate and blood oxygen saturation of the construction personnel are detected in real time

Ascent warning

The built-in height monitoring chip senses the height of the ground in real time to make the corresponding early warning function

Near induction

Respectively can detect 220V, 10KV, 35KV, 110KV, 220KV, close to a certain helmet distance after the helmet will issue a prompt

Gas detection

Can detect oxygen, hydrogen, ammonia and other gases

Face recognition

The image or video stream containing the face is collected by the camera, and the face is automatically detected and tracked in the image, and then the detected face is recognized

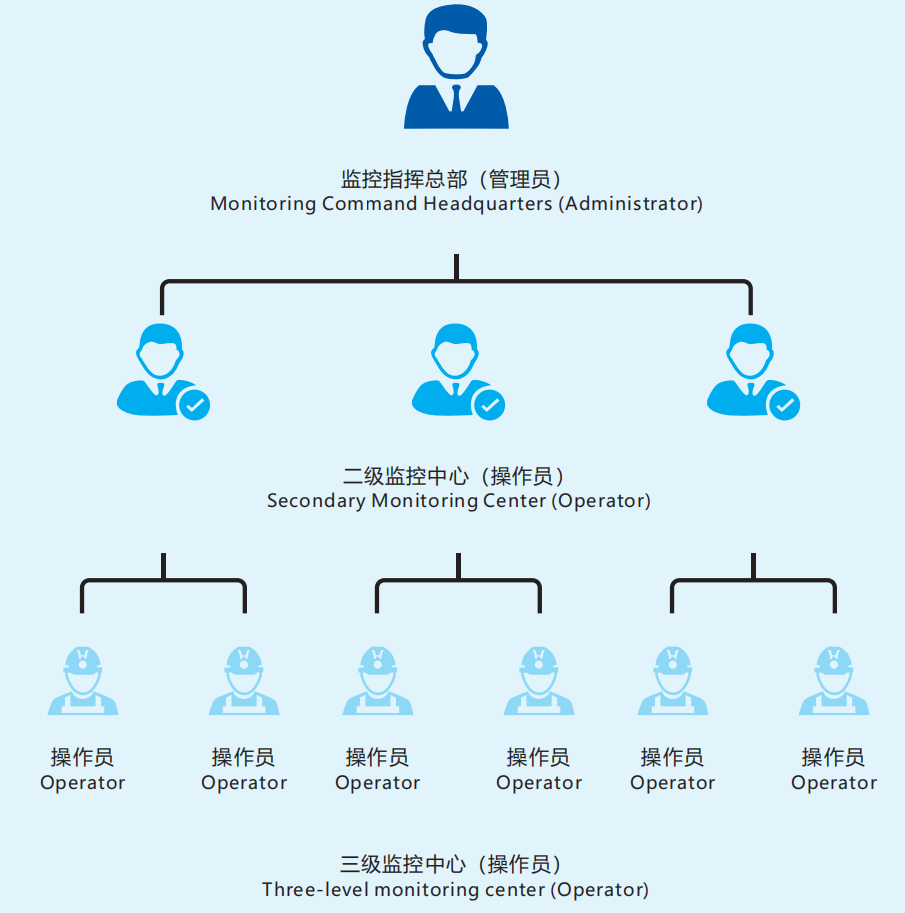

Multi-level management rights, accurate empowerment management "up and down" system

Effectively achieve "one level of management, one level is responsible for one level", and the top management can rationalize the allocation of different authorities and different responsibilities to subordinate units. That is, "Management to people, responsibility to people". Do not let management loopholes. Strictly control each link to do more effective work.

CNSH-M1(4G)

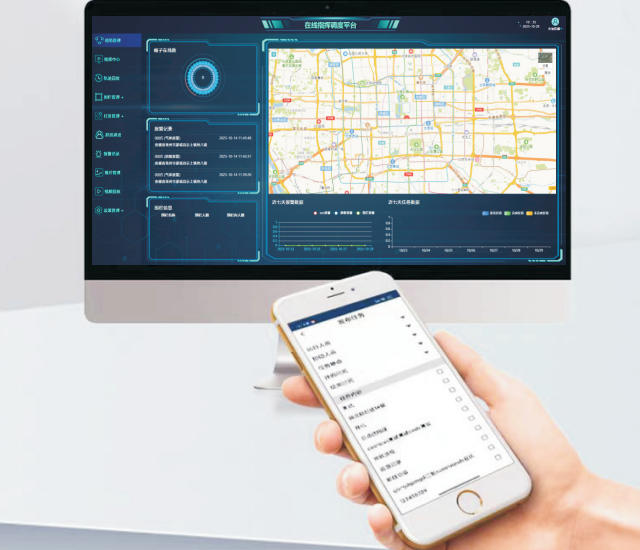

Back-end Management

With visual online command dispatching platform

Can connect to the Intranet, cloud storage independent account secondary encryption for your data security escort

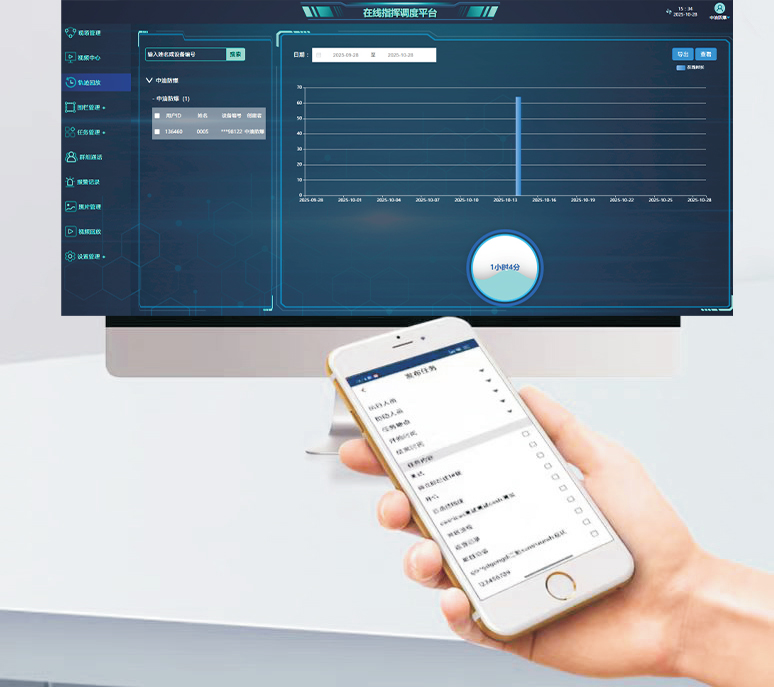

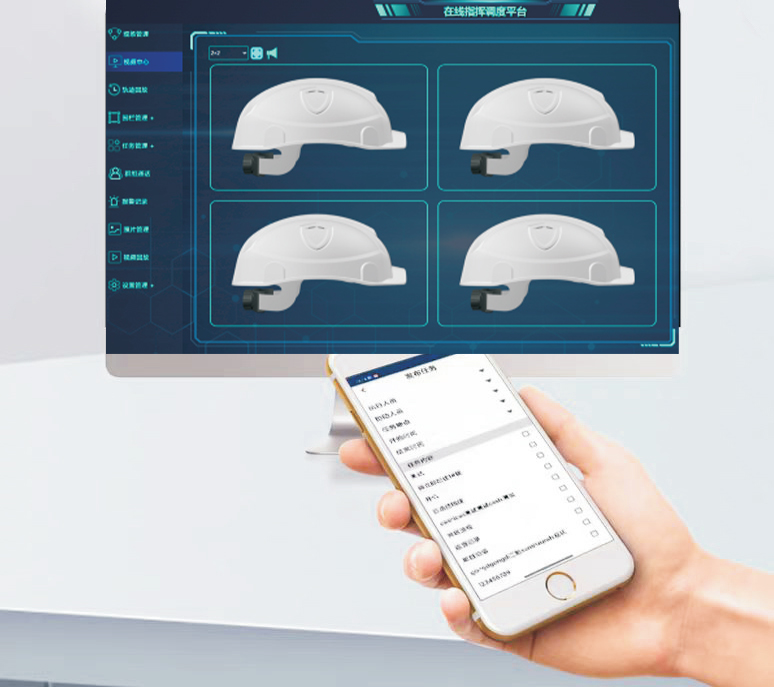

Real-time upload to improve work efficiency

The manager releases the task to be executed through the mobile phone management APP/Computer terminal, and can select multiple operators to perform it together. The front operators receive the task through the mobile phone personal version APP and execute it according to the requirements.

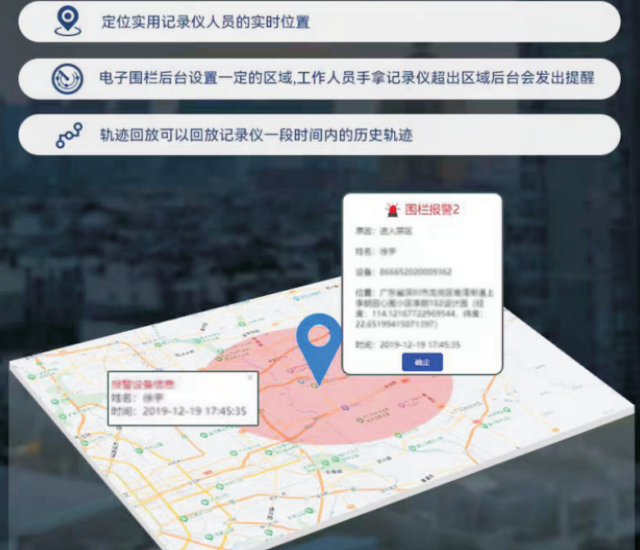

GPS+Beidou dual mode positioning

Strong signal, high precision, can achieve personnel Realtime positioning electronic fence track playbackBit real- time location of the person using the recorder

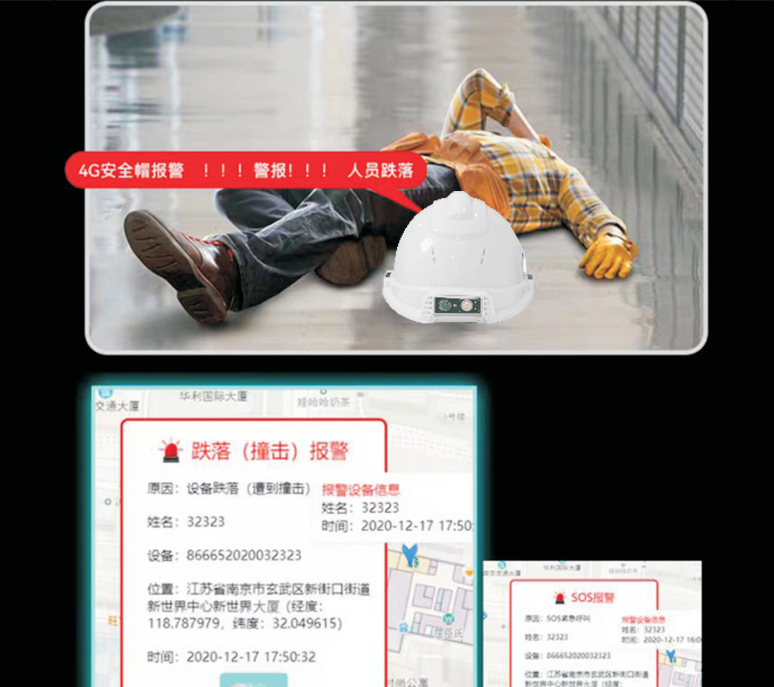

Real-time danger warning tips

Safety helmet set SOS one button for help, near electricity, climbing, falling, impact, silence, hat off alarm and other alarm functions to ensure the safety and efficiency of construction workers.

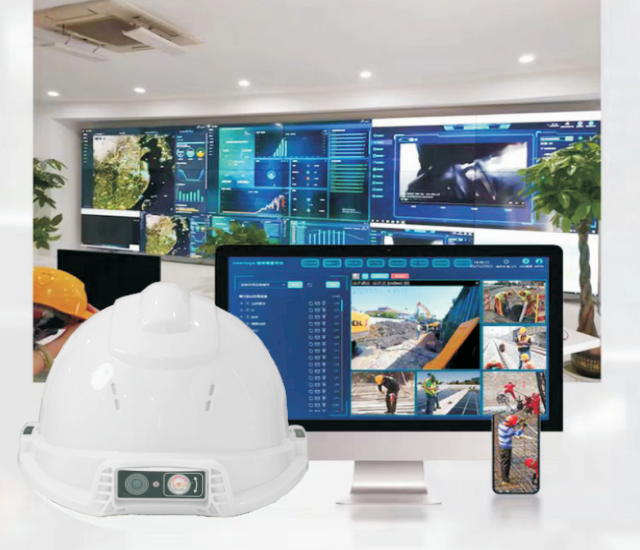

Real-time video surveillance

Workers wear smart safety helmets, and the built-in cameras can collect video images of the work site in real time and transmit them to the background video indication centerthrough the network. Back-end personnel can view the working environment, operation procedures and other conditions of the workers in real time through this center, so as to promptly understand the progress of the tasks and conduct remote supervision and technical assistance.

Real-time video surveillance

Some smart safety helmets are equipped with positioning functions. The background video indication center can display the real-time location information of the workers and record their movement trajectories. By setting up electronic fences, functions such as early warning for overstaffing or understaffing in the area and early warning for crossing boundaries by authority can also be realized, comprehensively ensuring the safety of operations.
