CNAT Explosion-Proof High-Mast Light

Widely used in national defense engineering, aerospace engineering, port engineering, storage depot, large-scale dangerous goods container terminal, oil well mining site and petrochemical industry and other places that need large-area centralized lighting;

Suitable for areas 1 and 2 in explosive gas environment;

Suitable for IIA, IIB, IIC explosive gas environment;

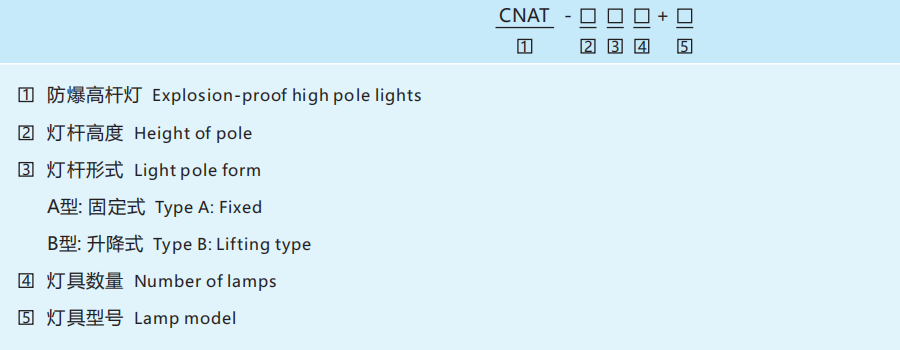

Model Meaning

CNAT Explosion-Proof High-Mast Light

Light pole parameters

Height of lamp pole(m)

15

20

25

30

35

40

Bottom diameter(mm)

550

550

580

650

700

720

Top diameter(mm)

220

220

250

280

300

320

Wall thickness(mm)

6/6

6/6

6/8

6/8/8

6/8/10

6/8/10/12



Note:

1. The above parameters are based on the lift type as an example.

2. In the actual design, the parameters of the light pole shall be formulated according to the specific situation.



Lamp model

Lamp name

Explosion-proof mark

CN151

Explosion-proof flood light

Ex db IIC T6 Gb; Extb IIIC T80℃ Db

CN152

Explosion-proof floodlight

Ex db IIC T6 Gb; Extb IIIC T80℃ Db

CN152

Explosion-proof floodlight

Ex db IIC T6 Gb; Extb IIIC T80℃ Db

CN152

Explosion-proof and anti-corrosion floodlight (stainless steel)

Ex db IIC T6 Gb; Extb IIIC T80℃ Db

CN152

Explosion-proof floodlight

Ex db IIC T6 Gb; Extb IIIC T80℃ Db

CN151

Explosion-proof high-efficiency energy-saving LED flood light

Ex db IIC T6 Gb; Extb IIIC T80℃ Db
