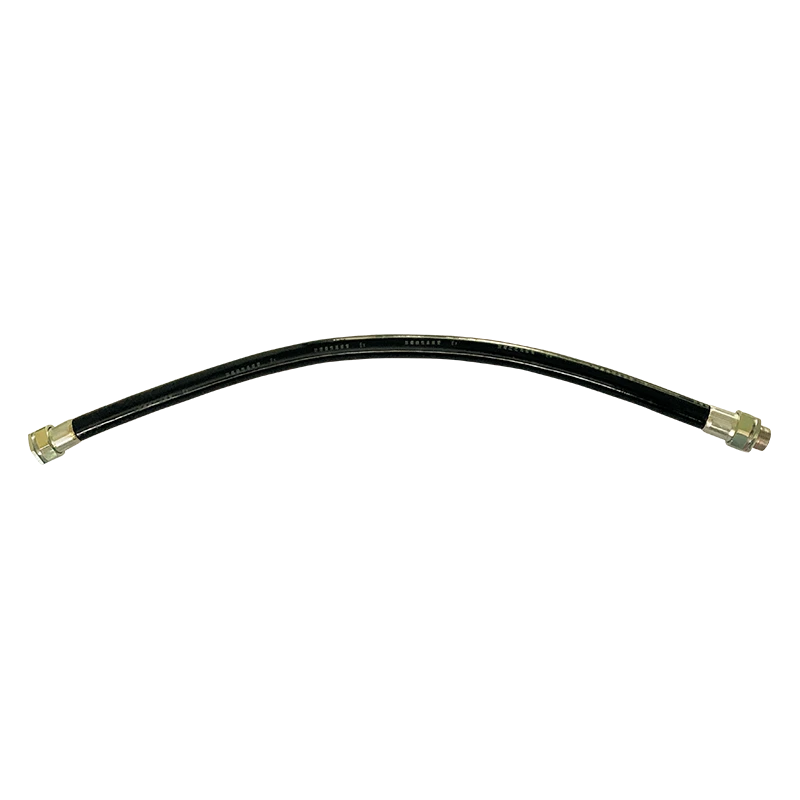

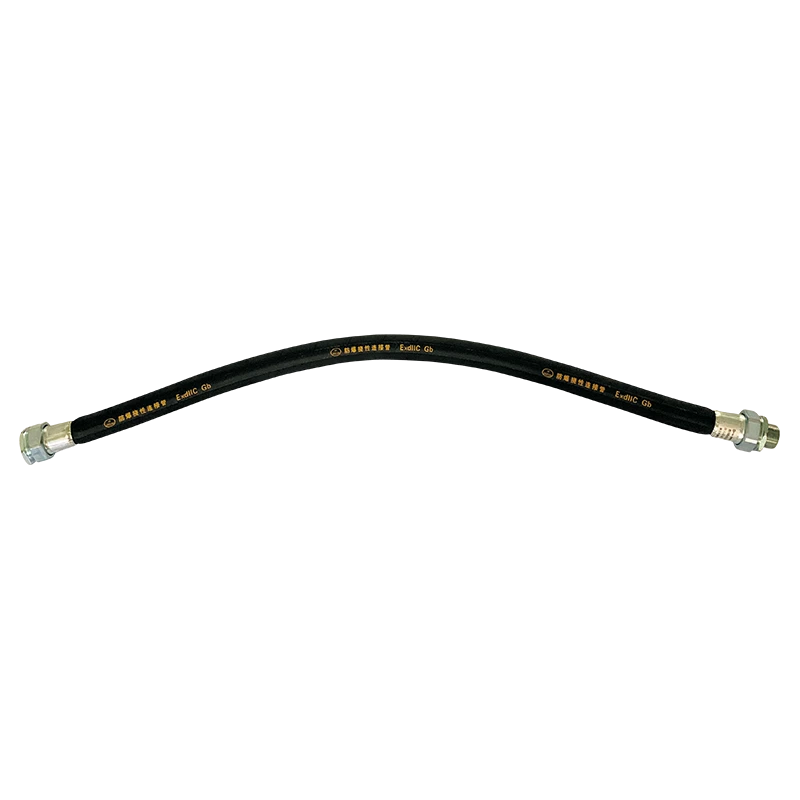

CN960 Explosion-Proof Flexible Conduit

Explosion-proof performance conforms to

CENELEC standard

IEC standard

NEC standard

Suitable for

Zone 1 and zone 2 zone 21 and zone 22 class II, zone 1 and zone 2

class II, zone 1, gas group A, B, C, D

Product description:

Type I PVC Rubber and plastic, both end joints are made of carbon steel.

Type II Braided steel wire with carbon steel end joints.

Type III Stainless steel mesh, both ends of the joints are made of stainless steel.

Suitable for

Widely used between explosion-proof boxes or explosion-proof lamps and pipes.

Protect the cable from damage.

Strong corrosion resistance.

Inquire Now Next Products

Technical Parameter

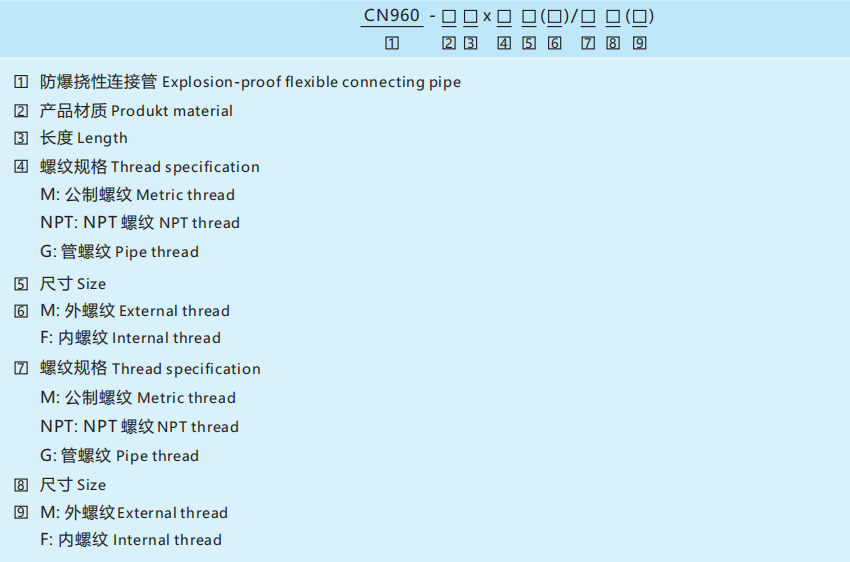

Explosion-proof flexible connecting pipe	CN960- □ x □□ ( □ )/ □□ ( □ ) □
Explosion proof typeGas explosion proof typeDust explosion proof type	II2G Ex db eb IIC GbII2D Ex tb IIIC Db
Executive standard	GB/T 3836.1,GB/T 3836.2,GB/T 3836.3,GB/T 3836.31,JB 9600;EN 60079-0, EN 60079-1, EN 61241-0,EN 61241-1;IEC 60079-0,IEC 60079-1,IEC 61241-0, IEC 61241-1
Product material	Type I PVC Rubber and plastic, both end joints are made of carbon steel.Type II Braided steel wire with carbon steel end joints.Type III Stainless steel mesh, both ends of the joints are made of stainless steel.
Protection level	IP65, IP66
Ambient temperature	-60℃~+55℃
Connection thread	Regular supply is pipe thread (G), if you have special requirements, such as metric thread (M), NPT thread, please specify when ordering.

Note:

1. M75, M90, M115 metric threads and corresponding G threads and NPT threads and other lengths can be customized.

2. The standard pitch of metric thread products is 1.5mm, other pitches can be customized, please specify when ordering.
