CN900 Explosion-Proof Junction Box

CN900 Explosion-Proof Junction Box

Home > Products > Explosion-Proof Electrical Equipment > Non-Intelligent Explosion-Proof Electrical Equipment > CN900 Explosion-Proof Junction Box

CN900 Explosion-Proof Junction Box

Explosion-proof performance conforms to
-CENELEC standard
-IEC standard
-NEC standard

Suitable for
Zone 1 and Zone 2
Zone 21 and 22
Class II, Zone 1 and Zone 2
Class II, Zone 1, gas group A, B, C, D
Class II, Zone 2, gas group A, B, C, D

Material aluminum alloy, surface sprayed.
The size and direction of the cable inlet are arbitrarily customized according to user requirements.

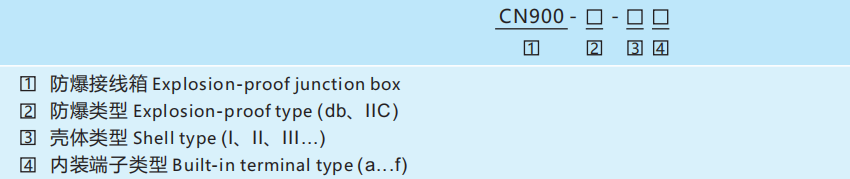

Model Meaning

CN900 Explosion-Proof Junction Box

Technical Parameter

Explosion-proof junction box (Ex db IIC)

CN900- IIC-□□

Explosion proof typeGas explosion proof typeDust explosion proof type

Ⅱ2G Ex db IIC T6/T4 GbⅡ1D Ex tb IIIC T80℃/T135℃ Db

Executive standard

GB/T 3836.1, GB/T 3836.2, GB/T 3836.31EN 60079-0, EN 60079-1, EN 60079-31, IEC 60079-0, IEC 60079-1, IEC 60079-31

Shell material

Aluminum alloy, surface sprayed.

Shell color

Window gray

Terminal block

Internationally renowned brand terminals

Exposed fasteners

Stainless steel

Rated voltage

Max. 690V AC

Protection level

IP65, IP66

Ambient temperature

-20℃~+55℃

Rated current

Cross section: 2.5mm², 4mm², 6mm², 10mm², 16mm², 35mm², 70mm², 95mm²Rated current: 24A, 32A, 41A, 57A, 76A, 125A, 192A, 250A

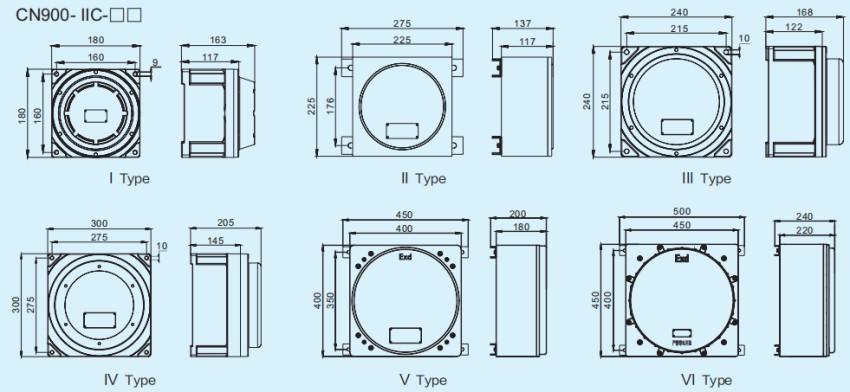

Outline diagram (all dimensions in mm)-can be modified

CN900 Explosion-Proof Junction Box
