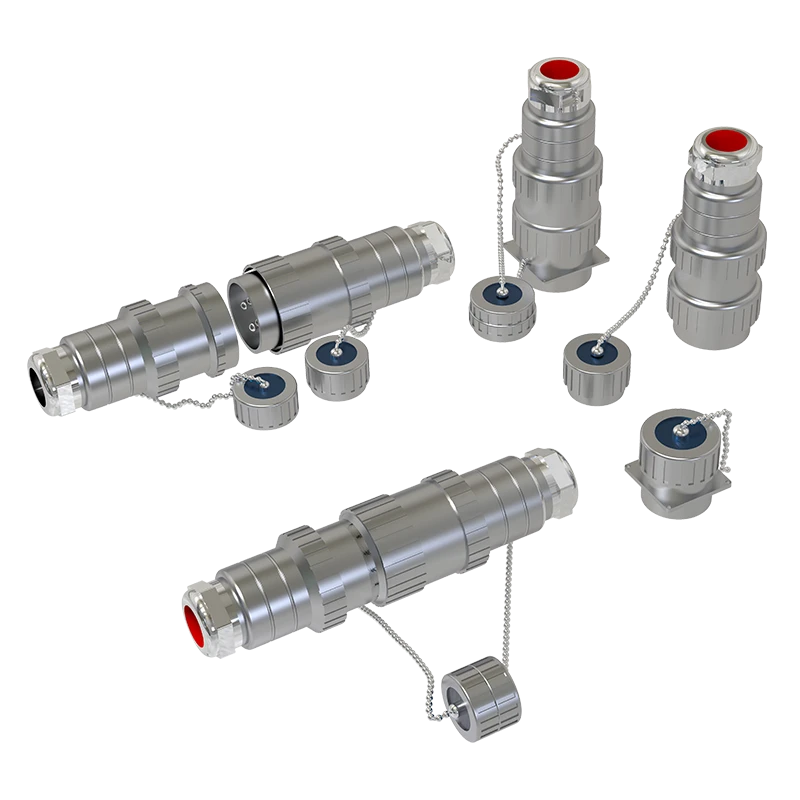

CN611 Explosion-Proof Connector

CN611 Explosion-Proof Connector

Home > Products > Explosion-Proof Electrical Equipment > Non-Intelligent Explosion-Proof Electrical Equipment > CN611 Explosion-Proof Connector

CN611 Explosion-Proof Connector

Scope of application

Applicable to explosive environment zone 1, Zone 2 places;

Suitable for IIA, IIB, IIC explosive gas environment;

Suitable for combustible dust environment 21, 22 zone places;

Applicable to T1~T6(T4) group temperature groups;

It is widely used in flammable and explosive gas environments such as oil mining, refining, chemical industry, offshore oil platforms, oil tankers, and military industry, metal processing and other combustible dust places.

Product Features

01

After the connection, the screw thread locking method is adopted, which has the function of shock-proof and anti-loosening, and effectively prevents misinsertion and removal;

02

High conductivity contact parts, reliable contact after plugging;

03

The core material is thermoplastic engineering plastic insulation, V0 flame retardant;

04

Shell surface anodized treatment, corrosion resistance;

05

Beautiful appearance; Forms of plug, socket, connector, plate front socket variety;

06

Connectors can be easily and quickly connected with electrical equipment in dangerous areas, safe, reliable and easy to break.

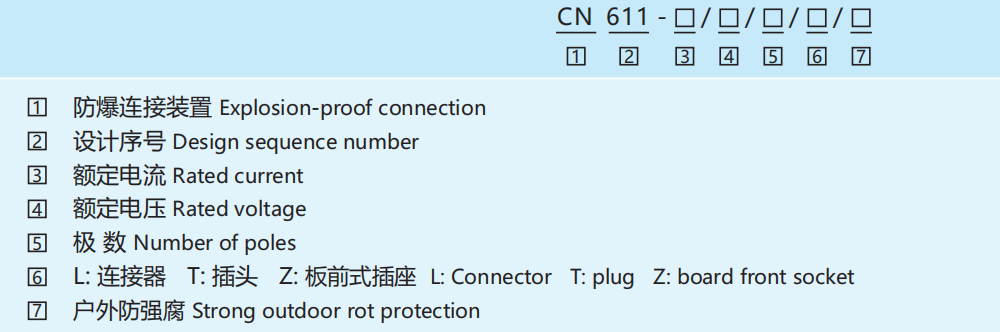

Model Meaning

CN611 Explosion-Proof Connector

Technical Parameter

Explosion-proof connection

CN611 - □/□/□/□/□

Explosion-proof mark

Ex ec IIC T6 Gc; Ex tb IIIC T80℃ Dc

Executive standard

GB/T 3836.1, GB/T 3836.2, GB/T 3836.31; IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31, EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31

Rated voltage

AC110~130V、AC200~250V、AC380~400V、AC/DC12~24V、AC/DC36~50V

Rated current

10A、16A

Class of protection

IP66

Anticorrosion grade

WF2

Pole number

1P+N+PE、2P、2P+PE、3P+PE、3P+N+PE

Lead-in device

Suitable for Φ8~Φ14mm cable

Wiring specification

Reliable connection of ≤2.5mm² wire

Connection mode

Fixed by screw, easy to install
