CN610 Explosion-Proof Connector

Home > Products > Explosion-Proof Electrical Equipment > Non-Intelligent Explosion-Proof Electrical Equipment > CN610 Explosion-Proof Connector

CN610 Explosion-Proof Connector

Explosion-proof performance conforms to
-CENELEC standard
-IEC standard
-NEC standard

Suitable for
Zone 1 and Zone 2
Zone 21 and 22
Class II, Zone 1 and Zone 2
Class II, Zone 1, gas group A, B, C, D

This product has 4 kinds of shells, 4 kinds of current levels (16A, 32A, 63A, 125A); the number of poles has three types: 3P, 4P and 5P.

The plug can only be pulled out after the switch in the socket is disconnected, and the plug is plugged in and the power is turned on.

Copper-free aluminum housing with plastic-sprayed surface.

Inquire Now Next Products

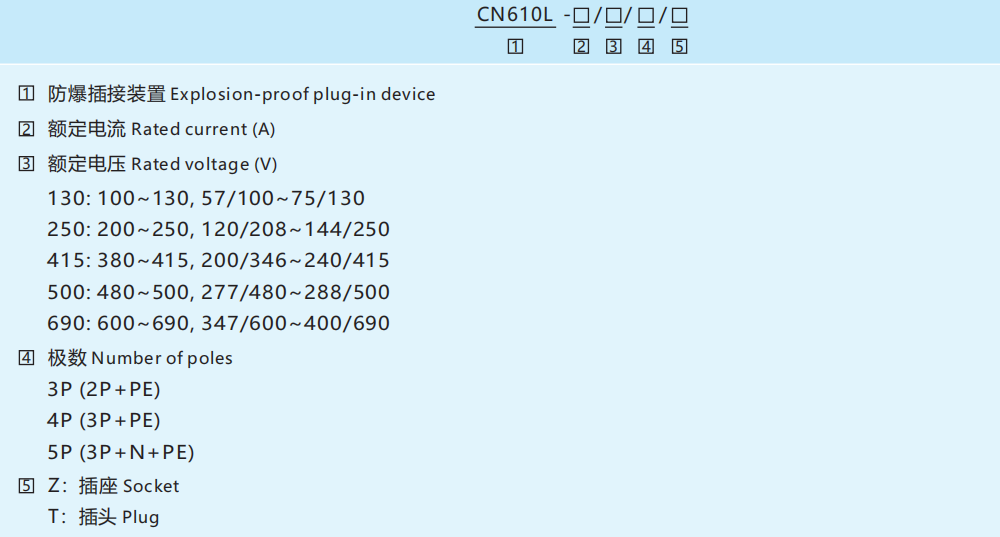

Model Meaning

CN610 Explosion-Proof Connector

Technical Parameter

Explosion-proof plug devices	CN610-L-16/□/□
Explosion proof typeGas explosion proof typeDust explosion proof type	Ⅱ2G Ex db eb IIC T6 GbⅡ2D Ex tb IIIC T80℃ Db
Executive standard	GB/T 3836.1, GB/T 3836.2, GB/T 3836.3, GB/T 3836.31EN 60079-0, EN 60079-1, EN 60079-31, IEC 60079-0, IEC 60079-1, IEC 60079-31
Shell material	Copper-free aluminum, plastic sprayed on the surface
Shell color	Window gray
Exposed fasteners	Stainless steel
Rated voltage	Max. 690V AC
Rated current	16A
Number of poles	3P (2P+PE), 4P (3P+PE), 5P (3P+N+PE)
Protection level	IP65, IP66
Ambient temperature	-60℃~+55℃
Grounding inside and outside	M5/M5
Socket cable entry	2 x M25 x 1.5(3P/4P), 2 x M32 x 1.5(5P)
Plug cable entry	1 x M25 x 1.5(3P/4P), 1 x M32 x 1.5(5P)
Cable entry device(optional)	Recommend to use CN970-II(Ex db) or CN970-III(Ex db)
Cable cross-sectional area	2.5~4mm²
