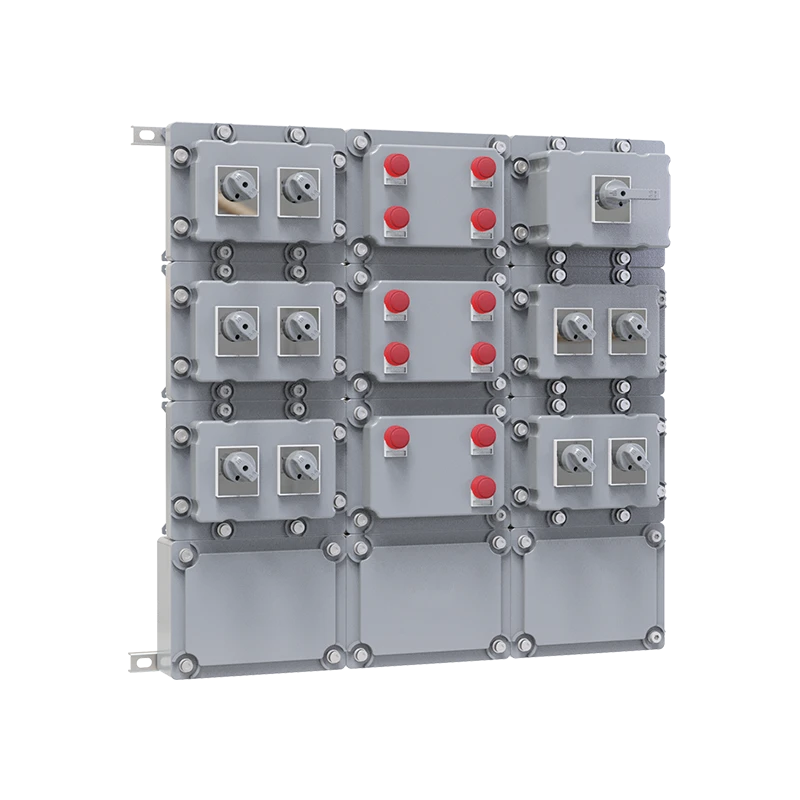

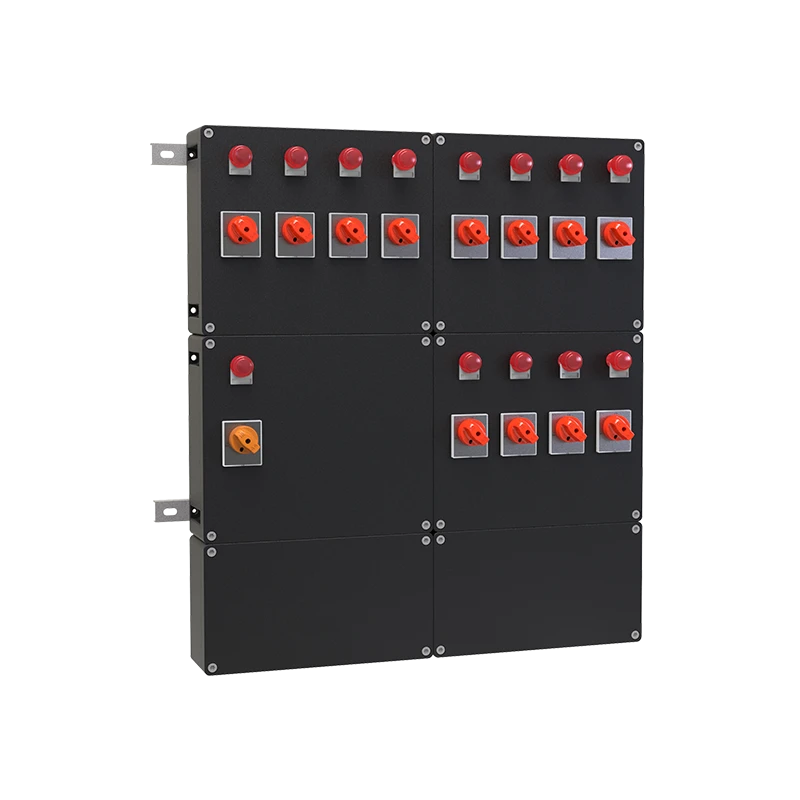

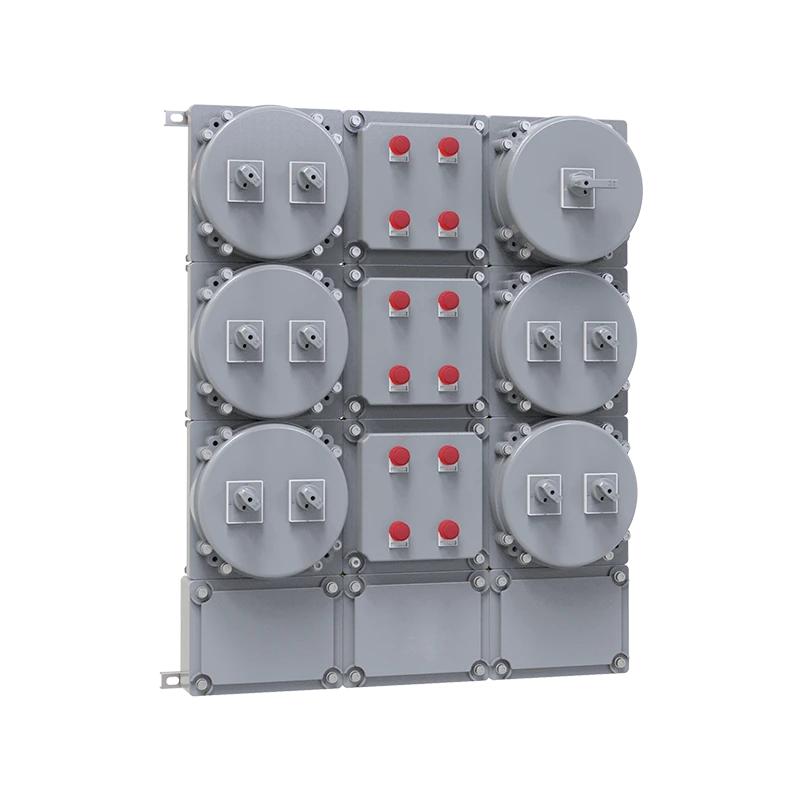

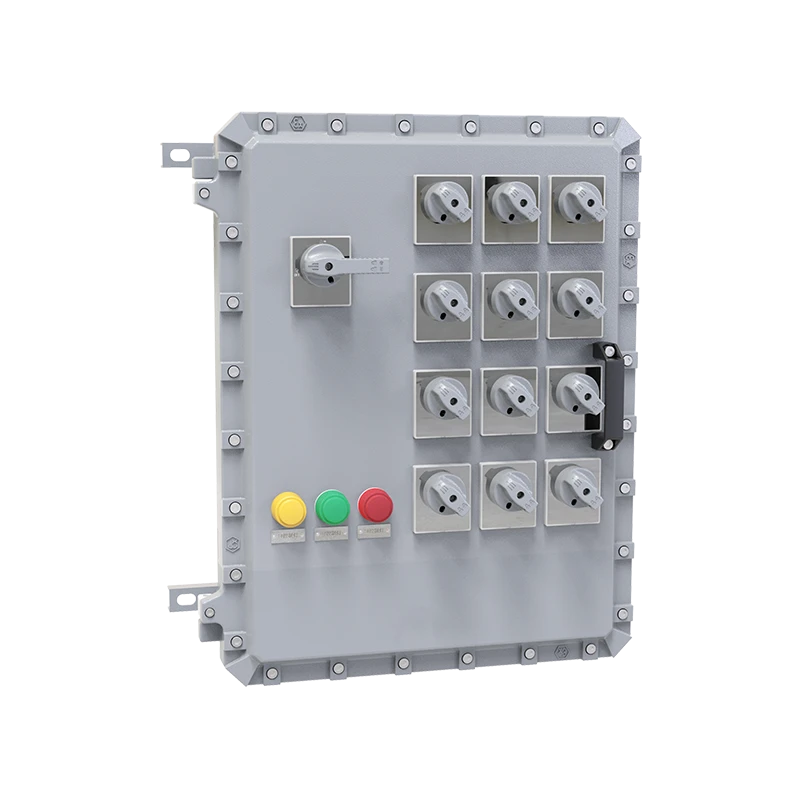

CN500 Explosion-Proof Lighting Distribution Unit

Explosion-proof performance complies with
-CENELEC standard -IEC standard -NEC standard

Suitable for zone 1 and zone 2, zone 21 and zone 22, class II, zone 1 and zone 2,
class II, zone 2, gas level C, D

This explosion-proof distribution box is composed of an explosion-proof cavity and an increased safety cavity.

The branch switch and the main switch are operated by the operating handle on the panel.

When leaving the factory, the internal wiring of the box has been connected to the wiring terminals.

Equipped with internationally renowned brand explosion-proof terminals.

No copper and aluminum, and the surface is sprayed with plastic.

The inlet and outlet ports are equipped with sealing pluggings, and the user must be equipped with a cable lead-in device when using it.

Please indicate special requirements when ordering.

Inquire Now Next Products

Technical Parameter

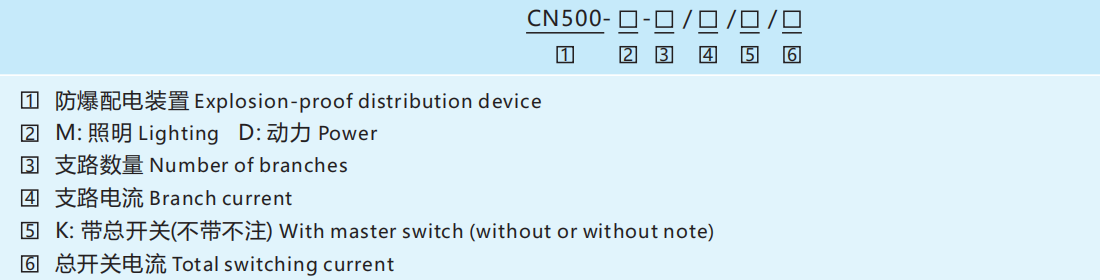

Explosion-proof lighting distribution device	CN500- M -□/□/□/□
Explosion proof typeGas explosion proof typeDust explosion proof type	Ⅱ2G Ex db eb IIB T4/T6 GbEx tb IIIC T130℃/T80℃ Db
Executive standard	GB/T 3836.1, GB/T 3836.2, GB/T 3836.3, GB/T 3836.31EN 50014, EN 50018, EN 50019, IEC 60079-0, IEC 60079-1, IEC 60079-7IEC 61241-0, IEC 61241-1
Main switch	Rated voltage: Max. 415V AC 50/60Hz; Rated current: Max.100A
Branch current	1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A
Exposed fasteners	Stainless steel
Shell material	Copper-free aluminum, plastic sprayed on the surface
Shell color	Window gray
Shell type	The shell separates the explosion-proof shell and the safety-increased shell, small circuit breakers, molded shell circuit breakers or other components are installed in the flameproof shell, and the explosion-proof indicator lights and Terminal block are all installed in the safety-increased shell.
Built-in component main switch	Miniature circuit breaker (MCB)Note: The main switch circuit breaker can be equipped with leakage protection function, if necessary, please specify
Built-in component branch switch	Mini circuit breaker (MCB)Note: The branch circuit breaker can be equipped with leakage protection function, if necessary, please specify
Terminal block	Internationally renowned brand explosion-proof Terminal block
Indicator light	Red
Protection level	IP65, IP66
Grounding inside and outside	M6/M8
Mbient temperature	-20℃~+55℃
Cable entry	Standard M□ x 1.5 Plugging
Cable entry device(optional)	Recommend to use CN970-I (Ex eb)
Inlet direction	Bottom in and bottom out
Installation method	Wall-mounted (standard), bracket (optional)
