CN310 Explosion-Proof Limit Switch

Explosion-proof performance conforms to
-CENELEC standard
-IEC standard

Suitable for
Zone 1 and Zone 2
Zone 21 and 22

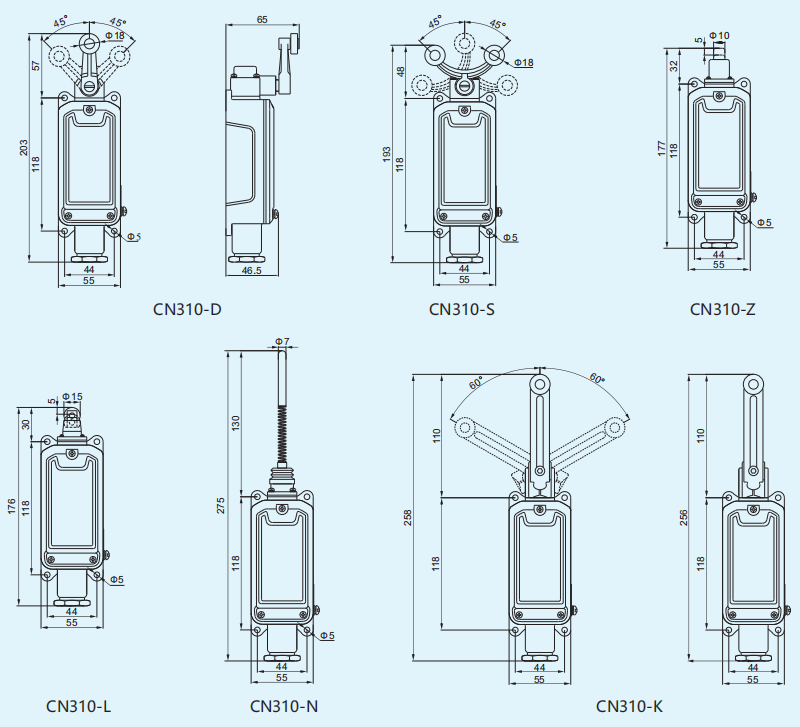

This product has 5 types of D, S, Z, L, N for selection.
Increased safety enclosure with explosion-proof components inside.
Copper-free aluminum housing with plastic-sprayed outer surface.

Selection Table

Model	Rated voltage	Rated current	Contact type	Order code
CN310-D	380V AC	0.79	1NO+1NC	40001
	250V AC	1.5	1NO+1NC	40002
	220V DC	0.1	1NO+1NC	40003
CN310-S	380V AC	0.79	1NO+1NC	40004
	220V AC	1.5	1NO+1NC	40005
	220V DC	0.1	1NO+1NC	40006
CN310-Z	380V AC	0.79	1NO+1NC	40007
	250V AC	1.5	1NO+1NC	40008
	220V DC	0.1	1NO+1NC	40009
CN310-L	380V AC	0.79	1NO+1NC	40010
	250V AC	1.5	1NO+1NC	40011
	220V DC	0.1	1NO+1NC	40012
CN310-N	380V AC	0.79	1NO+1NC	40013
	250V AC	1.5	1NO+1NC	40014
	220V DC	0.1	1NO+1NC	40015
CN310-K	380V AC	0.79	1NO+1NC	40016
	250V AC	1.5	1NO+1NC	40017
	220V DC	0.1	1NO+1NC	40018

Technical parameter

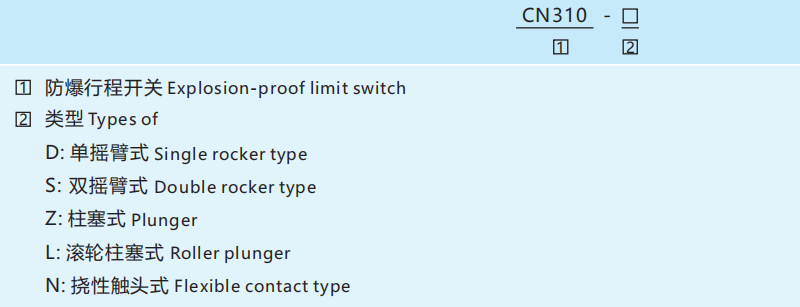

Explosion-proof limit switch	CN310-□
Explosion proof type Gas explosion proof type Dust explosion proof type	II2G Ex db eb IIC T6 Gb II2D Ex tb IIIC T80℃ Db
Executive standard	GB/T 3836.1, GB/T 3836.2, GB/T 3836.3, GB/T 3836.31EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31
Shell material	Copper-free aluminum, plastic sprayed on the surface
Shell color	Window gray
Exposed fasteners	Stainless steel
Contact type	1NO+1NC
Rocker arm swing angle or stroke	CN310D/S/Z: 45°CN310L: 45° 5mm 5mm
Rated voltage	380V AC / 220V DC
Rated current	0.79A / 0.1A
Protection level	IP65, IP66
Ambient temperature	-20℃~+55℃
Cable entry	1 x G1/2″
Cable outer diameter	Φ6.5~Φ10 mm
