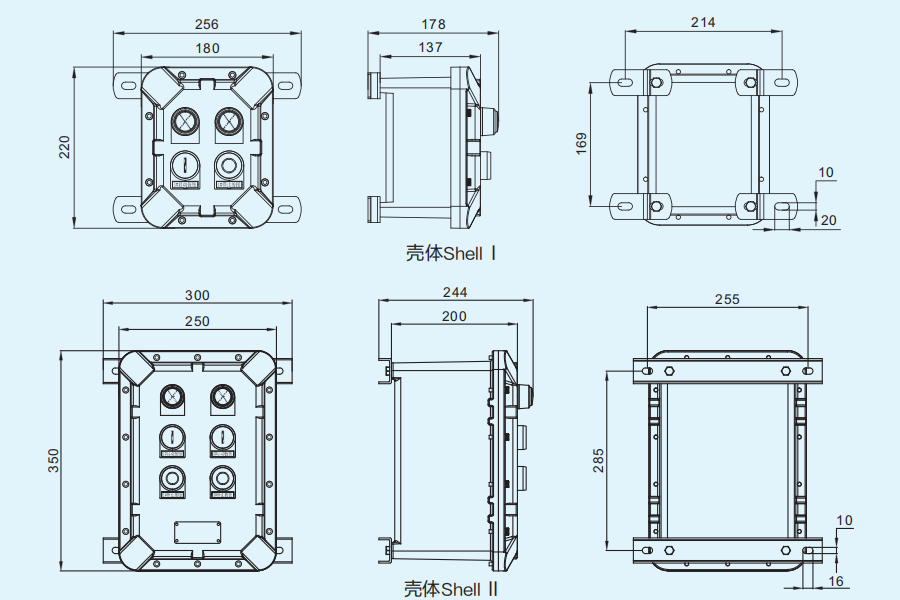

CN200 Explosion-Proof Control Panel

Explosion-proof operating column

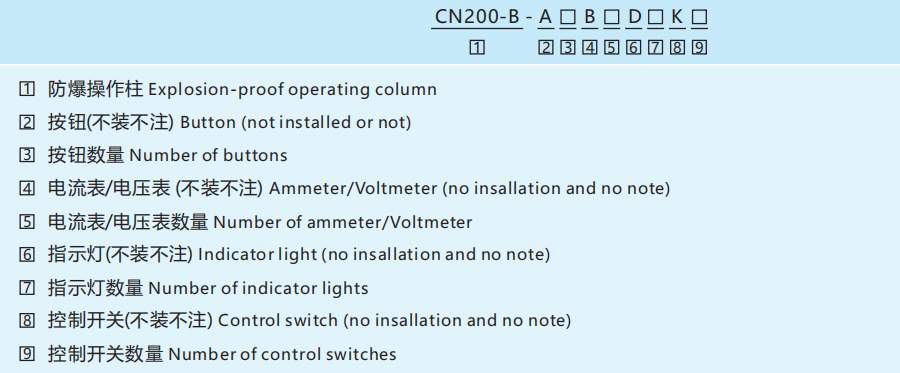

CN200-B (Ex db IIB+H2)

Explosion proof typeGas explosion proof typeDust explosion proof type

Ⅱ2G Ex db IIB T6/T4 GbⅡ2D Ex tb IIIC T80℃/T130℃ Db

Executive standard

GB/T 3836.1,GB/T 3836.2,GB/T 3836.3,GB/T 3836.31EN 60079-0, EN 60079-1, EN 60079-31,IEC 60079-0, IEC 60079-1, IEC 60079-31

Shell material

Copper-free aluminum, plastic sprayed on the surface

Shell color

Window gray

Exposed fasteners

Stainless steel

Rated voltage

Max. 415V AC

Rated current

10A

Protection level

IP65, IP66

Grounding inside and outside

I, II, III : M6/M6; IV, V, VI : M6/M8;

Ambient temperature

-60℃~+55℃

Built-in components

1. Button technical parameters;2. Indicator technical parameters;3. Control switch technical parameters;4. Technical parameters of explosion-proof ammeter/voltmeter.

Cable entry

Standard M□ x 1.5 Plugging

Cable entry device(optional)

Recommend to use CN970-II (Ex db) or CN970-III (Ex db).

Installation method

Wall-mounted
