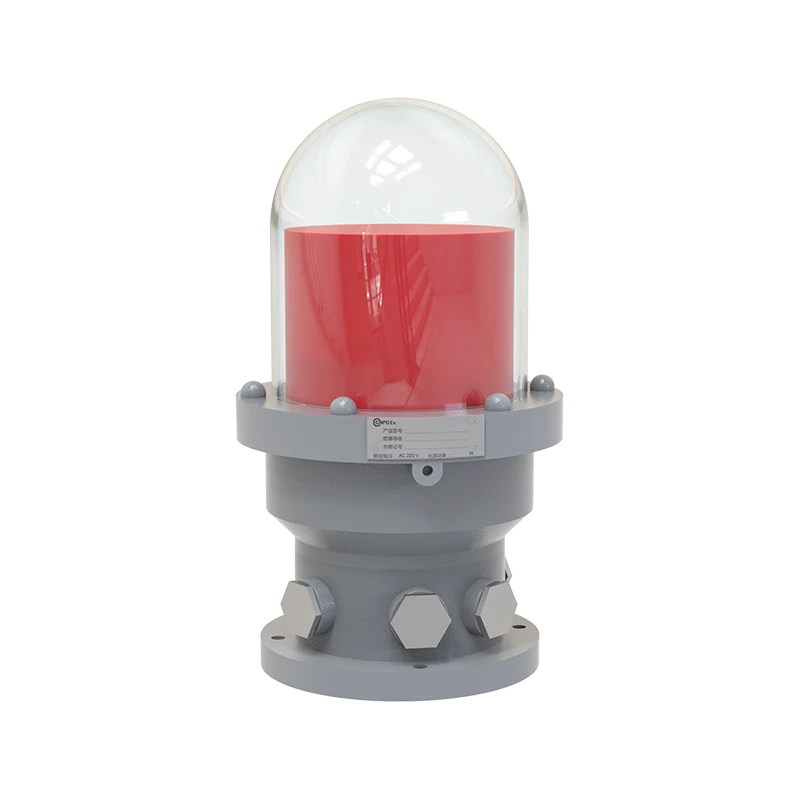

CN192 Explosion-Proof Aviation Obstruction Lights

Explosion-proof performance conforms to
-CENELEC standard
-IEC standard
-NEC standard

Applicable to zone 1 and zone 2 zone 21 and zone 22 class II, zone 1 and zone 2 class II, zone 2, gas group A, B, C, D

Using ultra-bright LED light source, high efficiency and energy saving, with a service life of up to 50,000 hours. Integrated chip control, and has a variety of protect the circuit.

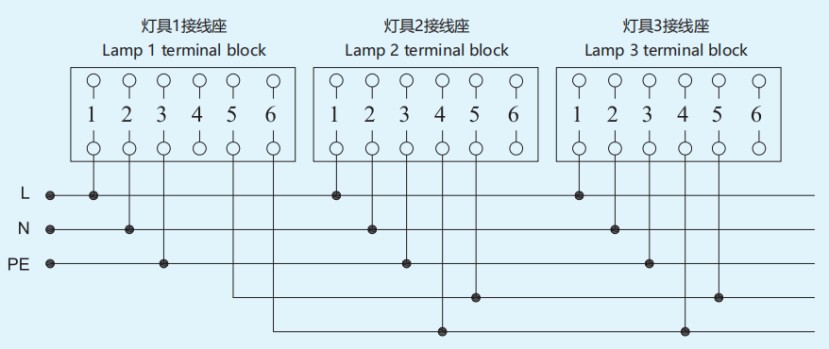

Synchronous flashing of multiple lamps can be realized through the synchronization signal line connection.

Copper-free aluminum shell, plastic sprayed surface.

Inquire Now Next Products

Technical Parameter

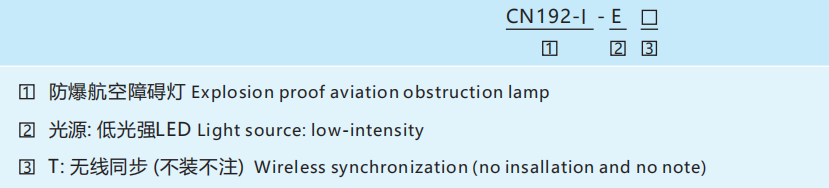

Explosion proof aviation obstruction lamp	CN192-I-E□
Explosion proof typeGas explosion proof typeDust explosion proof type	II2G Ex db IIC T6 GbII2D Ex tb IIIC T80℃ Db
Executive standard	GB/T 3836.1, GB/T 3836.2, GB/T 3836.31EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31
Shell material	Copper-free aluminum, plastic sprayed surface
Glass cover	Tempered glass, resistant to 4J impact
Exposed fasteners	Stainless steel
Rated voltage	100V, 110V, 120V, 127V, 220V, 230V, 240V AC 50/60Hz
Light source specifications	LED
Light source power (W)	≤10W (Continuous work)
Bulb color	Red
Peak light intensity	>200cd
Flash frequency	16, 20, 30, 40, 60, 80, 120, 240 (times/min)
Ground protection	M5 (Grounding screws are equipped inside and outside the lamp housing)
Protection level	IP65, IP66
Ambient temperature	-20℃~+55℃
Terminal block	3 x 1.5~2.5mm² (L+N+PE)
Cable entry	4 x M25 x 1.5 Plugging
Cable entry device (optional)	Recommend to use CN970-I (Ex eb)
