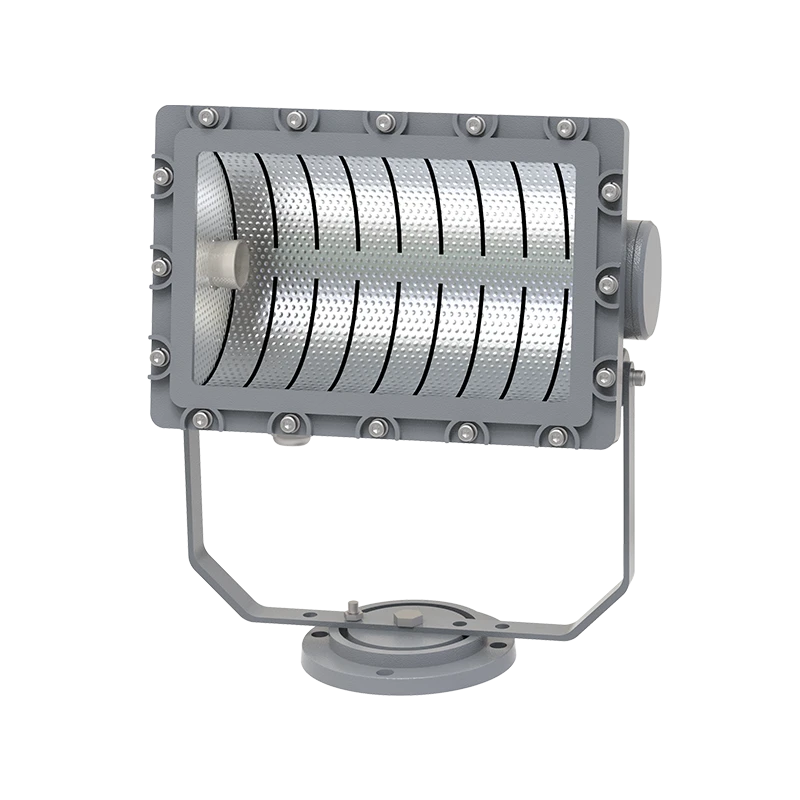

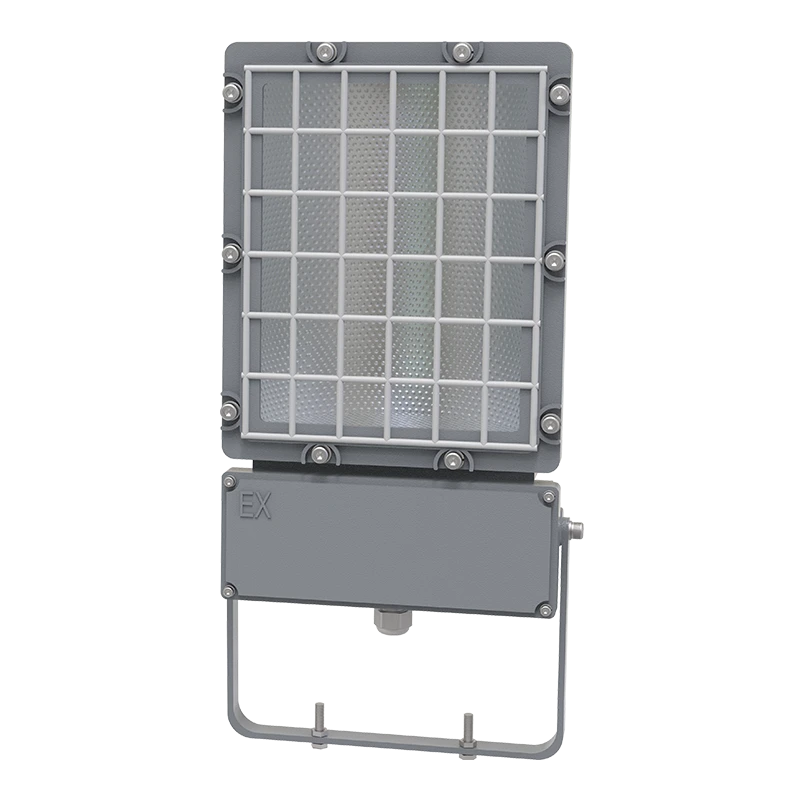

CN152 Explosion-Proof Floodlight

Explosion-proof performance complies with
-CENELEC standard
-IEC standard
-NEC standard
Suitable for zone 1 and zone 2 zone 21 and zone 22
Class II, zone 1 and zone 2
Class II, zone 2, gas group C, D
Class II, zone 1, gas group C, D
There are 125, 250, 400 and 1000 shell specifications for this series of lamps.
The light source and ballast are integrated, easy to install and maintain.
The trigger starts quickly, the performance is stable and the life is long.
Copper-free aluminum housing, plastic-sprayed outer surface.
Toughened glass cover, resistant to drastic changes in heat.

Selection Table

Model/Order code	Applicable light source power (W)			Lamp holder
Model/Order code	LED	LED	LED	Lamp holder
CN152-I-125	70, 100, 150	70, 100	80, 125	E27
CN152-I-250	175, 250	150, 250	175, 250	E40
CN152-I-400	400	400	—	E40
CN152-I-1000	1000	1000	—	E40

Ordering instructions

1. Please indicate the spare parts when ordering, see the attachment table.

2. The 125, 250 and 400 models of this series of lamps are not equipped with light sources when they leave the factory. It is recommended to use Philips brand light sources.

3. When the metal halide light source is used, the HPI European standard light source ballast is conventionally configured. It is recommended to use HPI European standard light source.

4. The 1000 model of this series of lamps is equipped with light source and ballast when it leaves the factory

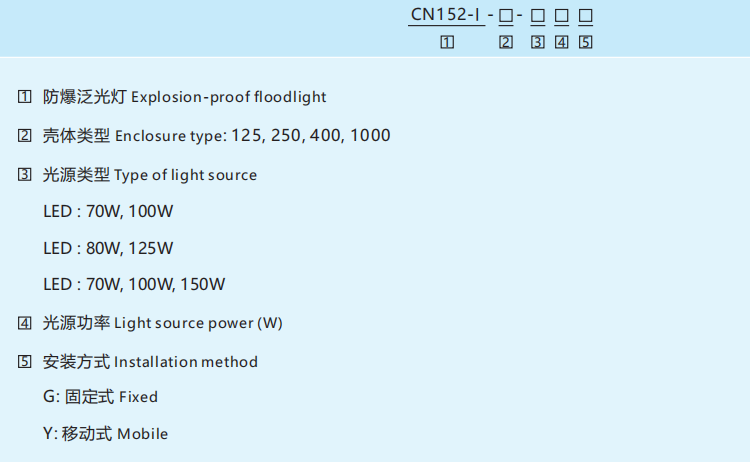

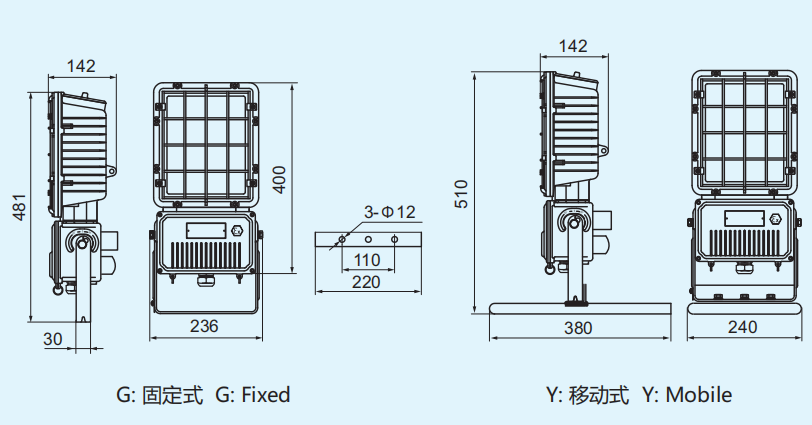

Floodlights	CN152-I-125-□□□
Explosion proof type Gas explosion proof type Dust explosion proof type	Ⅱ2G Ex db IIC T6 Gb Ⅱ2D Ex tb IIIC T80℃ Db
Executive standard	GB/T 3836.1,GB/T 3836.2,GB/T 3836.31; EN 60079-0, EN 60079-1,EN 60079-7, EN 60079-31,IEC 60079-0,IEC 60079-1,IEC 60079-7,IEC 60079-31
Shell material	Copper-free aluminum, plastic sprayed surface
Glass plate	Tempered glass, 4J impact resistance
Ballast	Inductive ballast, fast start-up, stable performance
Protection net	Carbon steel, plastic spray, white
Internal reflector	High purity aluminum
Trigger	Explosion-proof electronic trigger
Power factor	COSφ≥0.90(Compensate)
Exposed fasteners	Stainless steel
Lamp holder	E27
Applicable light source and light source power (W)	LED : 70W, 100WLED : 80W, 125WLED : 70W, 100W, 150W
Light source specifications	Module, multiple arrangement
Rated voltage	220~240V AC 50Hz (60Hz Optional)
Ground protection	Grounding screws are equipped inside and outside the lamp housing (M5)
Protection level	IP65, IP66
Ambient temperature	-60℃~+55℃
Terminal block	3 x 1.5~2.5mm² (L+N+PE)
Cable entry	2 x Φ21: 1 x M20 x 1.5 Cable entry device(CN970-I Ex eb, carbon steel), 1 x M20 x 1.5 Plugging2 x Φ21: 1 x M20 x 1.5 Cable entry device(CN970-I Ex eb, carbon steel), 1 x M20 x 1.5 Plugging
Applicable cable outer diameter	Φ5~Φ10 (mm)
