CN151 Explosion-Proof Floodlight

CN151 Explosion-Proof Floodlight

Home > Products > Explosion-Proof Electrical Equipment > Non-Intelligent Explosion-Proof Electrical Equipment > CN151 Explosion-Proof Floodlight

CN151 Explosion-Proof Floodlight

Explosion-proof performance complies with
- CENELEC standard
- IEC standard
- NEC standard

Suitable for zone 1 and zone 2 zone 21 and zone 22
Class II, zone 1 and zone 2
Class II, zone 2, gas group C, D
Class II, zone 1, gas group C, D

There are 125, 250, 400 and 1000 shell specifications for this series of lamps.

The light source and ballast are integrated, easy to install and maintain.

The trigger starts quickly, the performance is stable and the life is long.

Copper-free aluminum housing, plastic-sprayed outer surface.

Toughened glass cover, resistant to drastic changes in heat.

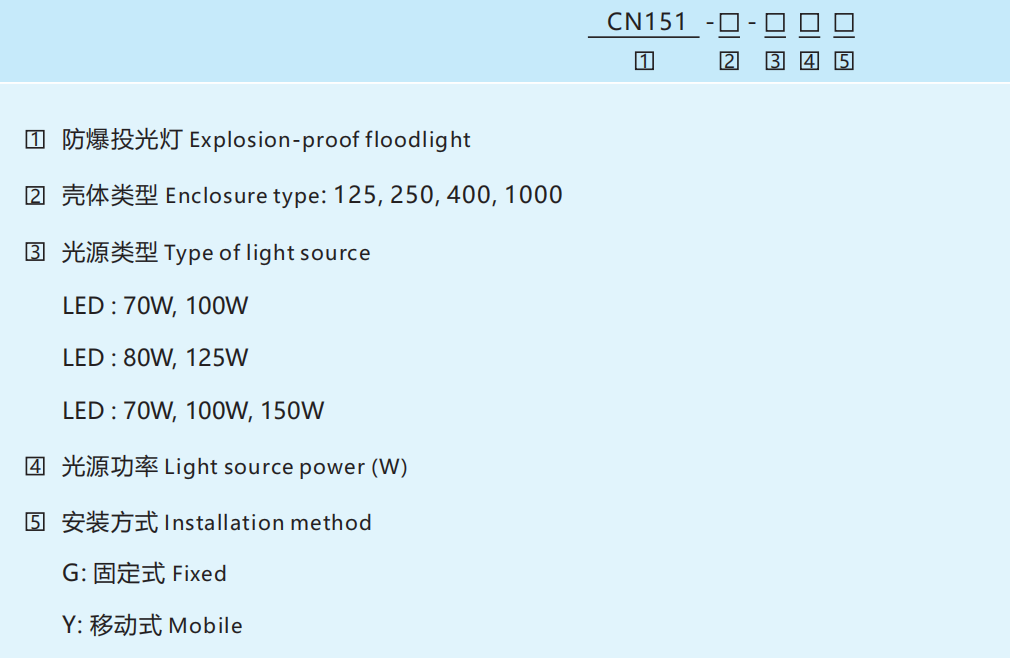

Model Meaning

CN151 Explosion-Proof Floodlight

Selection Table

Model/Order code

Applicable light source power (W)

Lamp holder

LED

LED

LED

CN151-125

70, 100, 150

70, 100

80, 125

E27

CN151-250

175, 250

150, 250

175, 250

E40

CN151-400

400

400

E40

CN151-1000

1000

1000

E40


Ordering instructions


1. Please indicate the spare parts when ordering, see the attachment table.

2. The 125, 250 and 400 models of this series of lamps are not equipped with light sources when they leave the factory. It is recommended to use Philips brand light sources.

3. When the metal halide light source is used, the HPI European standard light source ballast is conventionally configured. It is recommended to use HPI European standard light source.

4. The 1000 model of this series of lamps is equipped with light source and ballast when it leaves the factory.

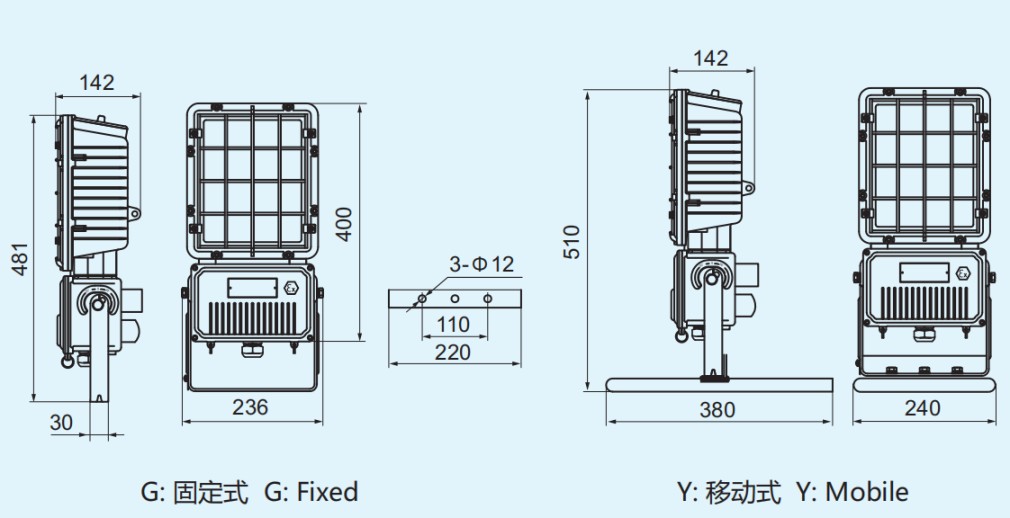

Outline diagram (all dimensions in mm)-can be modified

CN151 Explosion-Proof Floodlight
