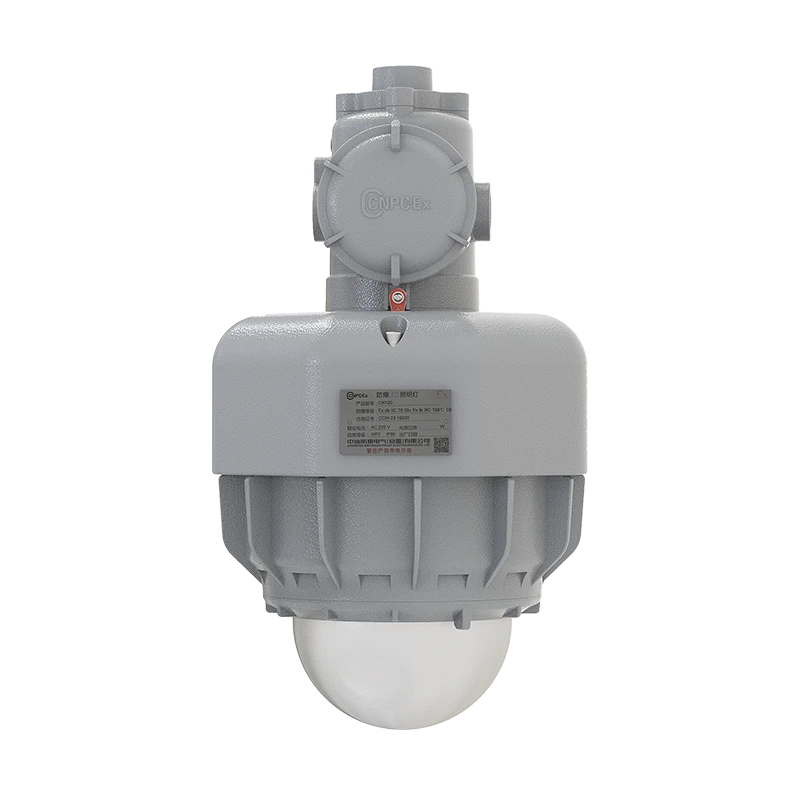

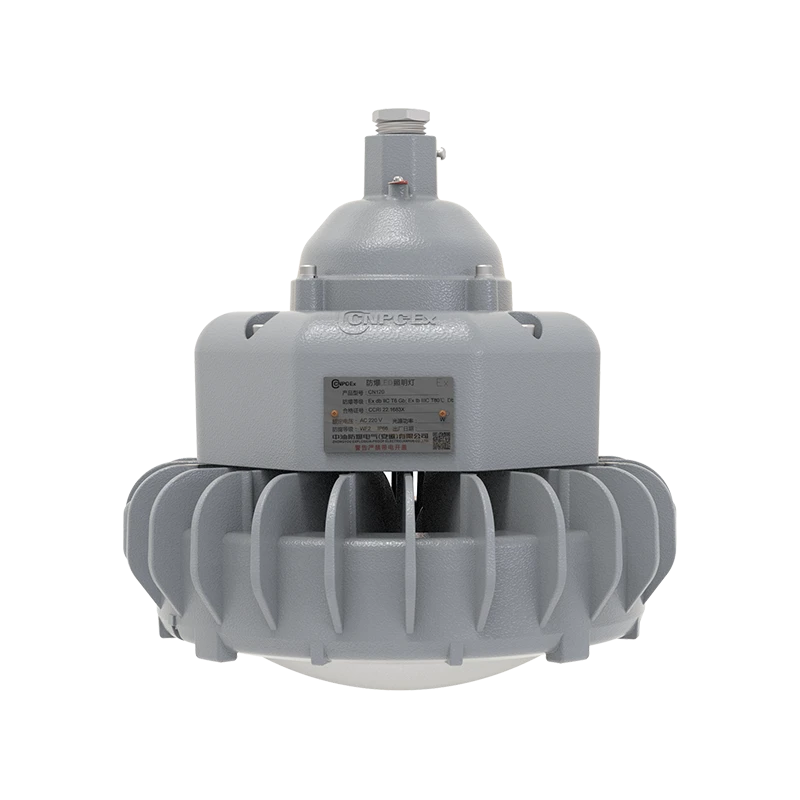

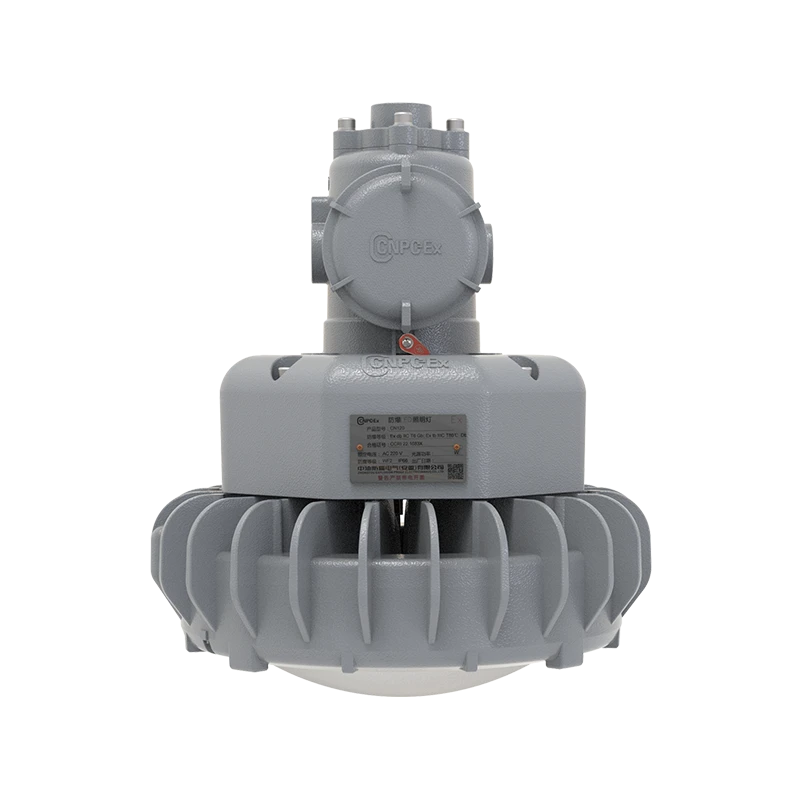

CN120 Explosion-Proof LED Lighting

Explosion-proof performance complies with CENELEC standard -IEC standard -NEC standard

Suitable for zone 1 and zone 2 zone 21 and zone 22 class II, zone 1 and zone 2 class II, zone 2, gas group A, B, C, D

3 shell types: I、II、III.

Applicable light source and light source power: LED: 20W,30W,40W,50W,60W,70W,80W,100W,120W,130W,150W.

Independent LED light source cavity, constant current and constant voltage power supply controller cavity, wiring cavity is isolated and not connected, air convection is used for heat dissipation structure.

International brand white LED, reasonable arrangement of multiple LEDs, high luminous efficiency and long life.

Two types of light distribution: spotlights and floodlights can be selected according to requirements.

Long working life of 100,000 hours, little maintenance.

Inquire Now Next Products

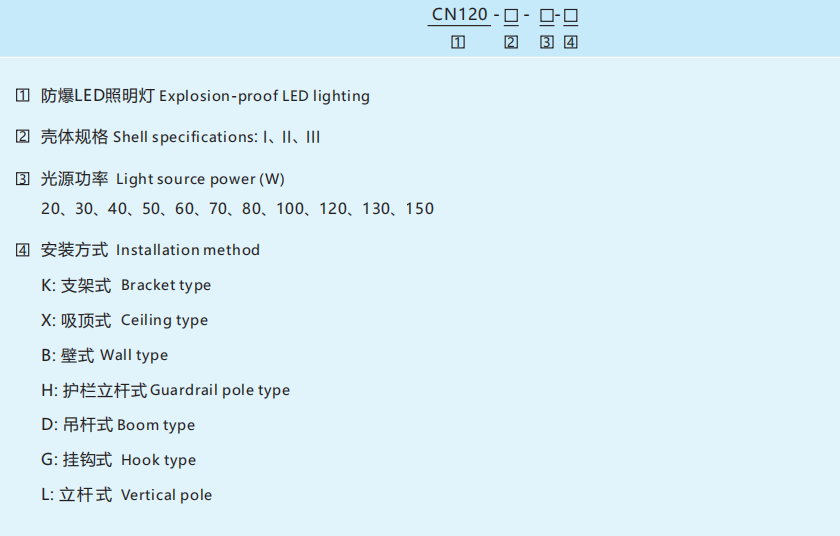

Selection Table

Model/Order code	Light source power(W)	Model/Order code	Light source power(W)
CN120-□I□□	20	CN120-□III□□	80
CN120-□I□□	30	CN120-□III□□	100
CN120-□I□□	40	CN120-□III□□	120
CN120-□I□□	50	CN120-□III□□	130
CN120-□II□□	60	CN120-□III□□	150
CN120-□II□□	70

Note:

1. Supply according to the "model/order code" of this table, including installation accessories;

2. This lamp has two kinds of light distribution: condensing and flooding. The standard product has no lens and flood light distribution effect. If you need to bring a lens, please specify when placing an order.

Item	English Content
Explosion-proof LED lighting	CN120-I
Explosion proof typeGas explosion proof typeDust explosion proof type	II2G Ex db IIC T6 Gb II2D Ex tb IIIC T80℃ Db
Executive standard	GB/T 3836.1,GB/T 3836.2,GB/T 3836.31; EN 60079-0, EN 60079-1, EN 60079-28, EN 60079-31,IEC 60079-0,IEC 60079-1,IEC 60079-28,IEC 60079-31
Shell material	Copper-free aluminum, plastic sprayed surface
Glass cover	Tempered glass, 4J impact resistance
Exposed fasteners	Stainless steel
Drive power	Wide voltage input, constant current and constant voltage output, power factor ≥0.95, with protection functions such as shunting, constant current, anti-surge, over current, open circuit, short circuit, and anti-electromagnetic interference.
Light source specifications	Module, multiple arrangement
Light source power (W)	20, 30, 40, 50
Color temperature (CCT)	Cool white light: 5400~6500KNote: The light source of conventional products is cold white light. If you need warm white (2700~3500K) or natural white (4700~5400K), it can be customized. Please specify when ordering.
Rated voltage	AC220V、DC24V、DC36V
Ground protection	Grounding screws are equipped inside and outside the lamp housing
Protection level	IP65、IP66
Ambient temperature	-40℃~+55℃
Terminal block	3 x 1.5~4mm²(L+N+PE)
Installation method	Bracket type, hook type, pole type, boom type, wall type, ceiling type
Cable entry	1 x M25 x 1.5 (Hook type, pole type, boom type)2 x M25 x 1.5 (Bracket type)4 x M25 x 1.5 (Wall type, ceiling type)
Cable entry device	Recommend to use CN970-II(Ex db) or CN970-III(Ex db)
