CN110 Explosion-Proof Firefly Lamp

Technical Parameter

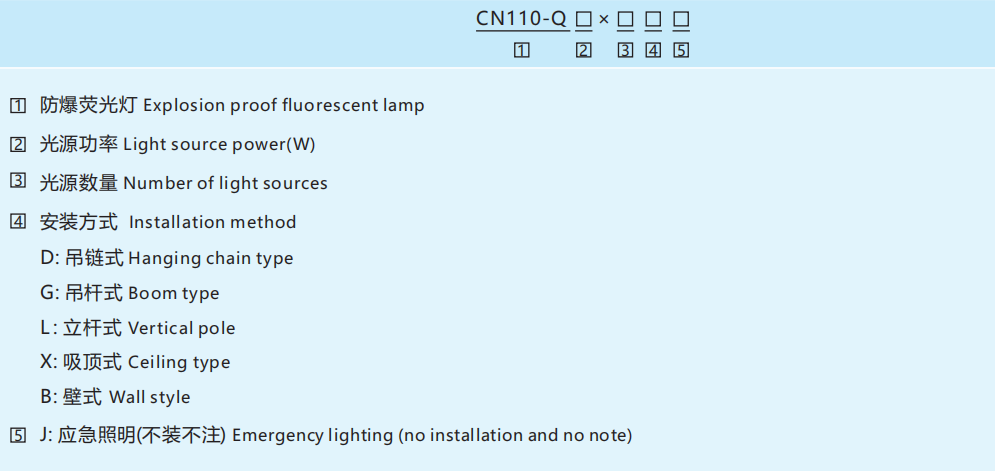

Explosion proof fluorescent lamp	CN110-□ □× □ □
Explosion proof type (Gas/Dust)	II2G Ex db eb IIC T6 Gb / II2D Ex tb IIIC T80℃ Db
Executive standard	GB/T 3836.1,GB/T 3836.2,GB/T 3836.3,GB/T 3836.31 IEC 60079-0, IEC 60079-1, IEC 61241-0, IEC 61241-1
Shell material	Copper-free aluminum, plastic sprayed surface
Ballast	Inductive ballast (electronic ballast is optional)
Outer reflector	Pure aluminum spray (white)
Exposed fasteners	Stainless steel
LED drive power	Wide voltage input, constant current and constant voltage output, power factor ≥0.95, with shunt, constant current, anti-surge, overcurrent, open circuit, short circuit, and anti-electromagnetic interference
Light source specifications	T8 Fluorescent lamp (configured at the factory); LED Module (equipped with lamp tube at factory)
Light source power (W)	T8:18Wx1,36Wx1,18Wx2,36Wx2; LED:9Wx1,18Wx1,9Wx2,18Wx2
LED Color temperature (CCT)	5000~5700K (Customizable:2700~3500K/4700~5400K)
Rated voltage	T8:220~240V AC 50Hz (60Hz Optional) (Inductive); 220~240V AC 50/60Hz (Electronic); LED:110~265V AC 50/60Hz
Ground protection	M5 (Grounding screws are equipped inside and outside the lamp housing)
Protection level	IP65、IP66
Ambient temperature	-20℃~+55℃
Terminal block	2×3x 1.5~2.5mm (L+N+PE)
Cable entry	1x G3/4″ (1x M25x1.5 for double-pipe riser; others are M25x1.5 or M20x1.5 plus reducer)
Applicable cable outer diameter	Φ10~Φ14 (mm)

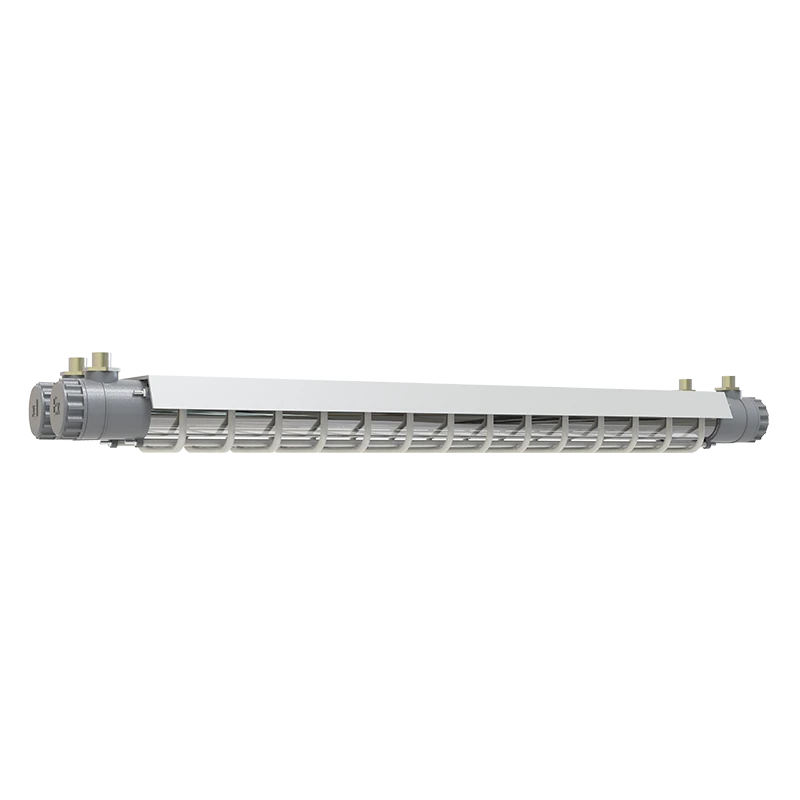

Explosion proof fluorescent lamp	CN110-D □□ × □□
Explosion proof type (Gas/Dust)	II2G Ex db eb IIC T6 Gb / II2D Ex tb IIIC T80 ℃ Db
Executive standard	GB/T 3836.1,GB/T 3836.2,GB/T 3836.3,GB/T 3836.31 EN 60079-0,EN 60079-1,EN 60079-31,IEC 60079-0,IEC 60079-1,IEC 60079-31
Shell material	Copper-free aluminum, surface sprayed
Glass tube	Tempered glass, resistant to 4J impact
Ballast/Drive power	Electronic ballast; Wide voltage input, constant current and constant voltage output, power factor ≥0.95, with shunt, constant current, anti-surge, overcurrent, open circuit, short circuit, and anti-electromagnetic interference
Protection net (optional)	Carbon steel, galvanized, plastic sprayed(white) or stainless steel
External reflector (optional)	Pure aluminum spray(white)
Exposed fasteners	Stainless steel
Light source specifications	T8 Fluorescent lamp(configured at the factory); T5 Fluorescent lamp(configured at the factory); LED Module(equipped with lamp tube at factory)
Light source power (W)	T8:18Wx2,36Wx2,58Wx2; T5:14Wx2,28Wx2,35Wx2; LED:9Wx2,18Wx2,28Wx2
LED Color temperature (CCT)	5000~5700K (Customizable:2700~3500K/4700~5400K)
Rated voltage	T8/T5:220~240V AC 50/60Hz; 100~300V AC 50/60Hz; LED:110~265V AC 50/60Hz
Ground protection	M5 (Grounding screws are equipped inside and outside the lamp housing)
Protection level	IP65、IP66
Terminal block	2×3×1.5~4mm² (L+N+PE)
Cable entry	2×M25×1.5 Plugging
Cable entry device (optional)	Recommend to use CN970- II (Ex db) or CN970- III (Ex db)

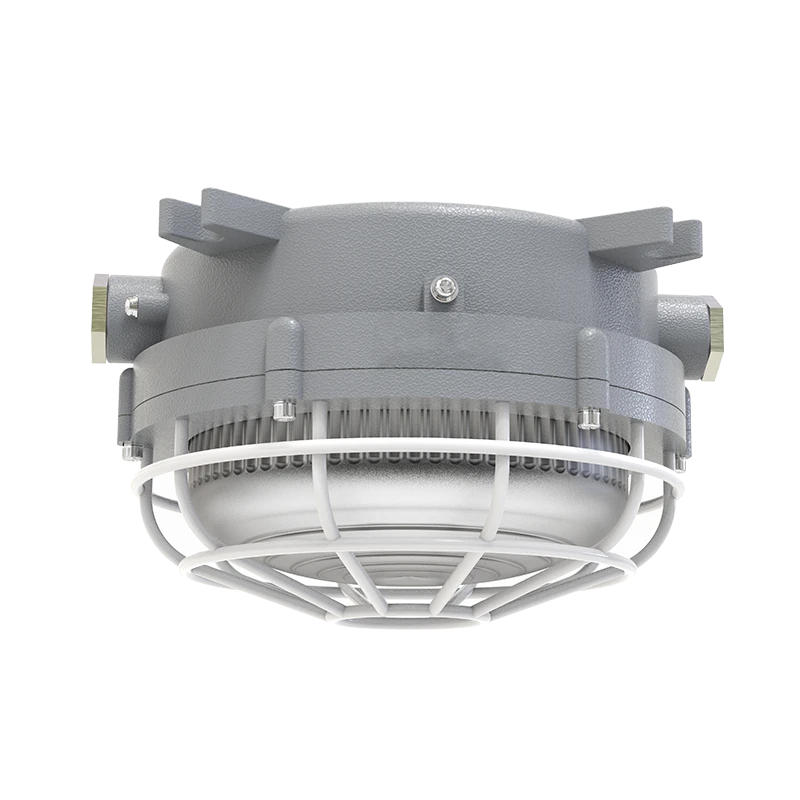

Explosion proof ring fluorescent lamp	CN110-H □ x □
Explosion proof type (Gas/Dust)	II2G Ex db IIC T6 Gb / II2D Ex tb IIIC T80°C Db
Executive standard	GB/T 3836.1,GB/T 3836.2,GB/T 3836.31 EN 60079-0,EN 60079-1,IEC 60079-0,IEC 60079-1,IEC 60241-0,IEC 60241-1
Shell material	Copper-free aluminum,plastic sprayed surface
Protection net	Plastic spray,carbon steel,white
Transparent cover	Tempered glass,resistant to 4J impact
Ballast	Electronic ballast, power factor ＞0.95
Internal reflector	High purity aluminum
Exposed fasteners	Stainless steel
Light source specifications	Biax 2D-4 feet (Ge Brand)
Light source power (W)	21Wx1,21Wx2
Lamp holder	GR-10q
Rated voltage	220~240V AC 50/60Hz
Ground protection	M5 (Grounding screws are equipped inside and outside the lamp housing)
Protection level	IP65、IP66
Ambient temperature	-20°C~+55°C
Terminal block	3x1.5~2.5mm² (L+N+PE)
Cable entry	2xM25x1.5 Plugging
Cable entry device (optional)	Recommend to use CN970-II(Ex db) or CN970-III(Exdb)

Explosion proof clean fluorescent lamp	CN110-G- □ □×□□□
Explosion proof type (Gas/Dust)	II3G Ex nA IIC T6 Gc / II2D Ex tb IIIC T80 ℃ Db
Executive standard	EN 60079-0,EN 60079-15,EN 60079-31 IEC 60079-0,IEC 60079-15,IEC 60079-31
Shell material	Stainless steel
Transparent cover	Tempered glass, resistant to 4J impact
Ballast/Drive power	Electronic ballast, power factor≥0.95; Wide voltage input, constant current and constant voltage output, power factor ≥ 0.95
Exposed fasteners	Stainless steel
Light source specifications	T8 Fluorescent lamp (supplied with the light fittings); LED Module (supplied with the light fittings)
Light source power (W)	T8:18Wx1,36Wx1,18Wx2,36Wx2; LED:9Wx1,18Wx1,9Wx2,18Wx2
LED Color temperature (CCT)	5000~5700K (Customizable:2700~3500K/4700~5400K)
Rated voltage	T8:100~300V AC 50/60Hz; LED:110~265V AC 50/60Hz
Protection level	IP65、IP66
Ambient temperature	-40℃~+55℃
Terminal block	2×3x 1.5~4mm (L+N+PE)
Cable entry	2xΦ21: 2xM20x1.5 Cable entry device (CN970- I Ex eb, Plastic)
Applicable cable outer diameter	Φ6~Φ12 (mm)
Emergency device	Built-in special emergency controller and Ni-MH battery pack, over-discharge and over-charge protection function
Emergency power (W)	T8:18W x 1, 36W x 1; LED:9W x 1, 18W x 1
Emergency start time	0.3s
Charging time	24h
Emergency lighting time	120min (180min Optional)

Special explosion proof fluorescent lamp for derrick	CN110-QT36x2□
Explosion proof type (Gas/Dust)	II2G Ex db eb IIC T6 Gb / II2D Ex tb IIIC T80°C Db
Executive standard	GB/T 3836.1,GB/T 3836.2,GB/T 3836.3,GB/T 3836.31;EN 60079-0,EN 60079-1,EN 60079-5, EN 60079-7,EN 60079-31,IEC 60079-0,IEC 60079-1,IEC 60079-5,IEC 60079-7,IEC 60079-31
Main shell material	Copper-free aluminum,surface anodized
Shell at both ends	Copper-free aluminum, surface sprayed
Transparent cover	Polycarbonate, light transmittance reaches 90%, 7J impact resistance
Ballast	Electronic ballast, power factor ≥0.95
Exposed fasteners	Stainless steel
Light source specifications	T8 Lamps (Equipped with lamp tube at factory)
Light source power (W)	18Wx 2, 36Wx2
Emergency power (W)	18Wx1,36Wx1
Rated voltage	96~254V AC 50/60Hz
Protection level	IP65、IP66
Ambient temperature	-40°C~+55°C
Terminal block	3x 1.5~4mm² (L+N+PE)
Cable entry	1xG3/4"
Cable entry device	Equipped with sealing gasket and pressing device at factory (customizable)
Applicable cable outer diameter	10~14(mm)
Emergency start time	0.3s
Charging time	24h
Emergency lighting time	120min (180min Optional)
