ZY-PD Emergency Lighting Distribution Panel

Environmental Use

It is widely used in urban factories, workshops, warehouses, exhibition halls, pipe galleries, supermarkets and other places to provide real-time information transmission for centralized control equipment. In case of sudden disaster accidents such as power outages and fires, it provides communication for backend fire-fighting equipment.

It is suitable for places with high protection requirements and damp conditions.

It is suitable for temperature environments from -10℃ to +55℃.

Product Features

01

Modular component technology makes the entire system easy to install, commission and maintain.

02

High security. Different operation permissions require entering corresponding passwords to access.

03

Can display the status parameters of the power supply very intuitively.

04

Output 8 circuits. Under the premise of not exceeding the rated power, the output current of each circuit is not more than 5A.

05

Adopts isolated circuit design, making the system more stable.

06

Has short-circuit detection and short-circuit protection functions.

07

Implemented standard: GB 17945-2024.

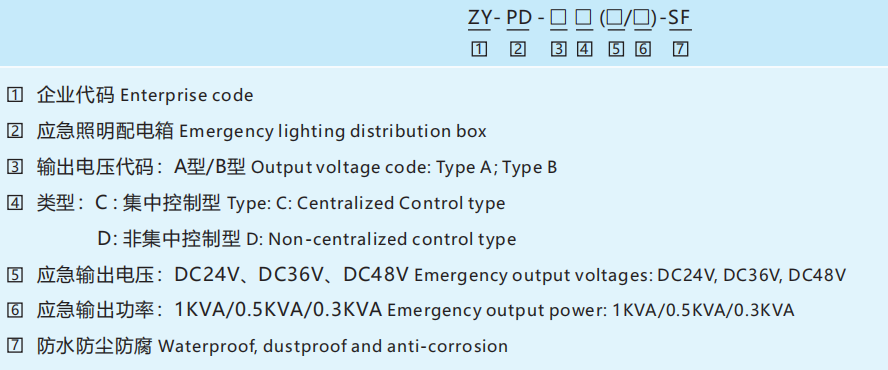

Model Meaning

ZY-PD Emergency Lighting Distribution Panel

Technical Parameter

Emergency lighting distribution box

ZY-PD-□□(□/□)-SF

Executive standard

GB 17945-2024

Rated voltage

AC220V

Emergency time

≥90min

Protection grade

IP65

Battery type

Lithium iron phosphate

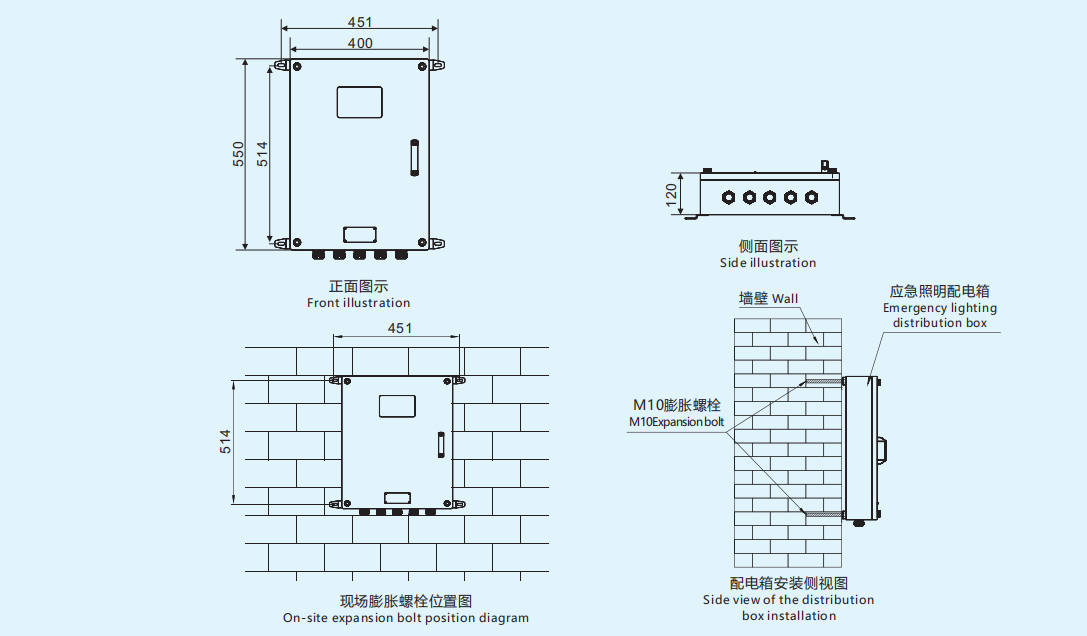

Product Shape and Installation Diagram

ZY-PD Emergency Lighting Distribution Panel



Installation method: Mark the positions of the four M10×100 expansion bolts on the wall, drill holes for the expansion bolts, then hang the equipment, and finally tighten the nuts to secure it.
