CNAM Smart Explosion-Proof Street Lights

CNAM Smart Explosion-Proof Street Lights

Home > Products > Explosion-Proof Electrical Equipment > Intelligent Explosion-Proof Electrical Equipment > CNAM Smart Explosion-Proof Street Lights

CNAM Smart Explosion-Proof Street Lights

Explosion-proof performance conforms to
-CENELEC standard
-IEC standard
-NEC standard
Suitable for zone 1 and zone 2 zone 21 and zone 22.

Product Advantages

01

Users can refer to the following installation diagrams to select suitable lamps and installation methods according to site requirements.

02

Please refer to the lamps of the same model in this catalog for detailed technical parameters and ordering methods of each lamp.

03

Street lamp type lamps are not equipped with lamp poles when they leave the factory. If necessary, please specify when ordering.

Installation Diagram

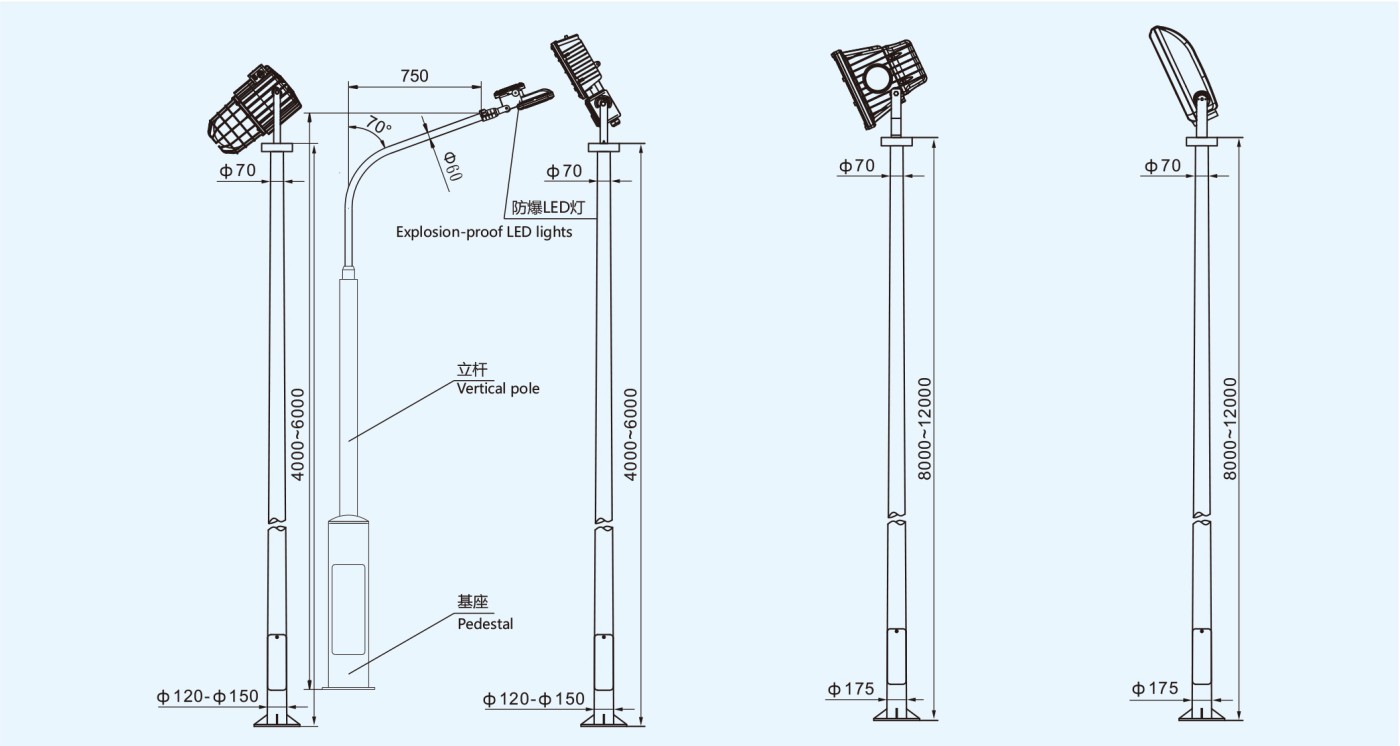

Curved-arm street lamp installation diagram

CNAM Smart Explosion-Proof Street Lights

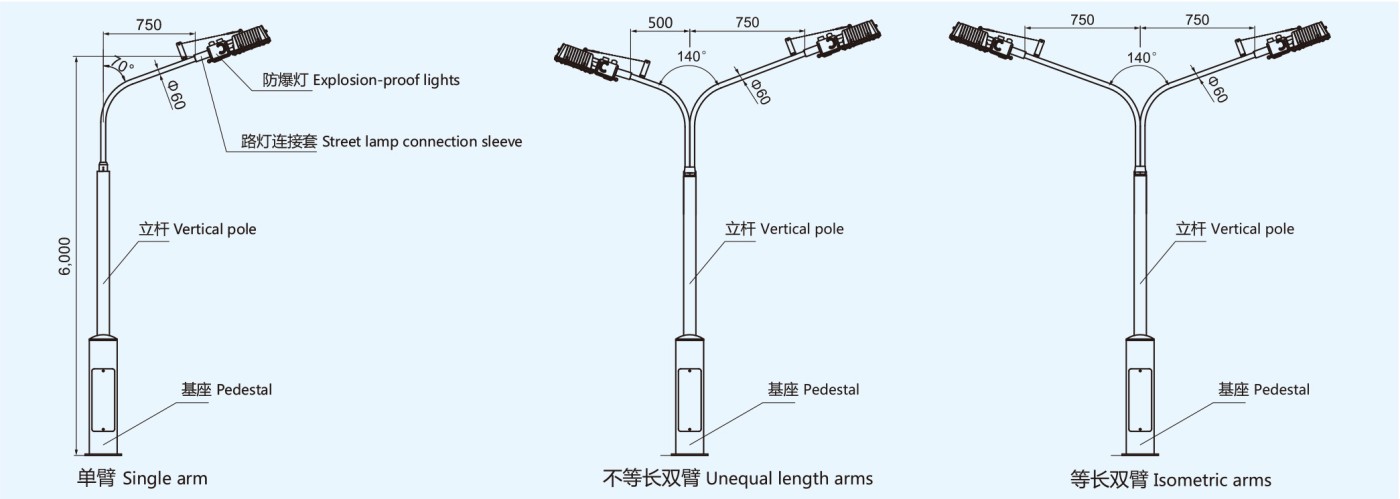

Platform type street light installation icon

CNAM Smart Explosion-Proof Street Lights

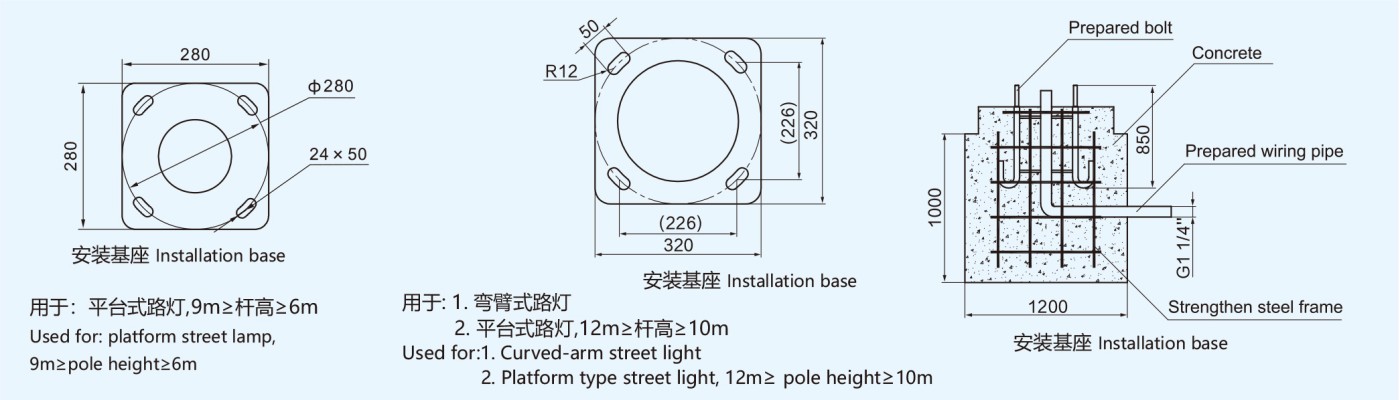

Reference drawing of street light base

CNAM Smart Explosion-Proof Street Lights
