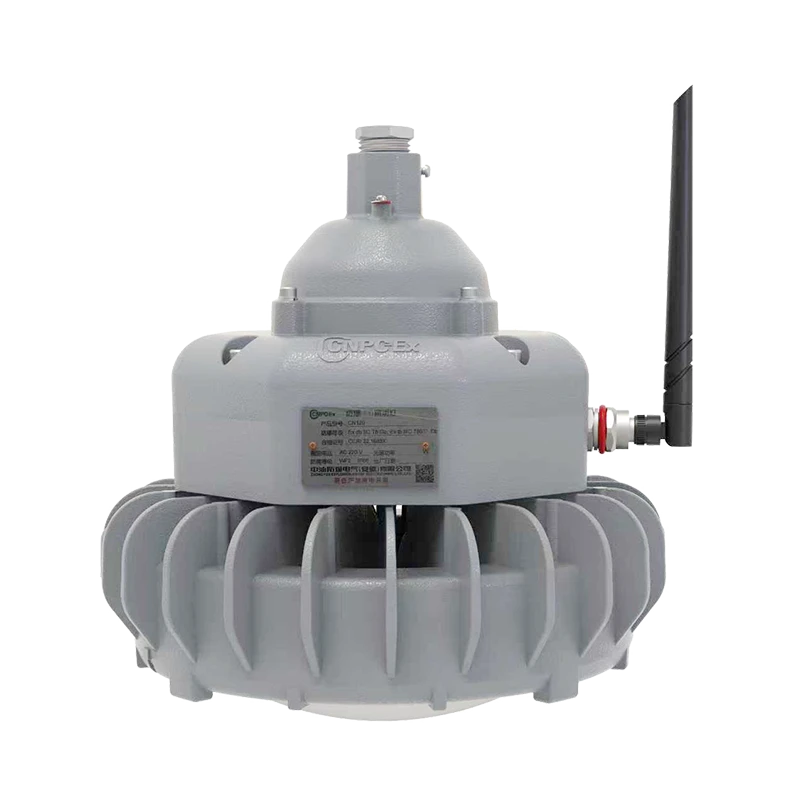

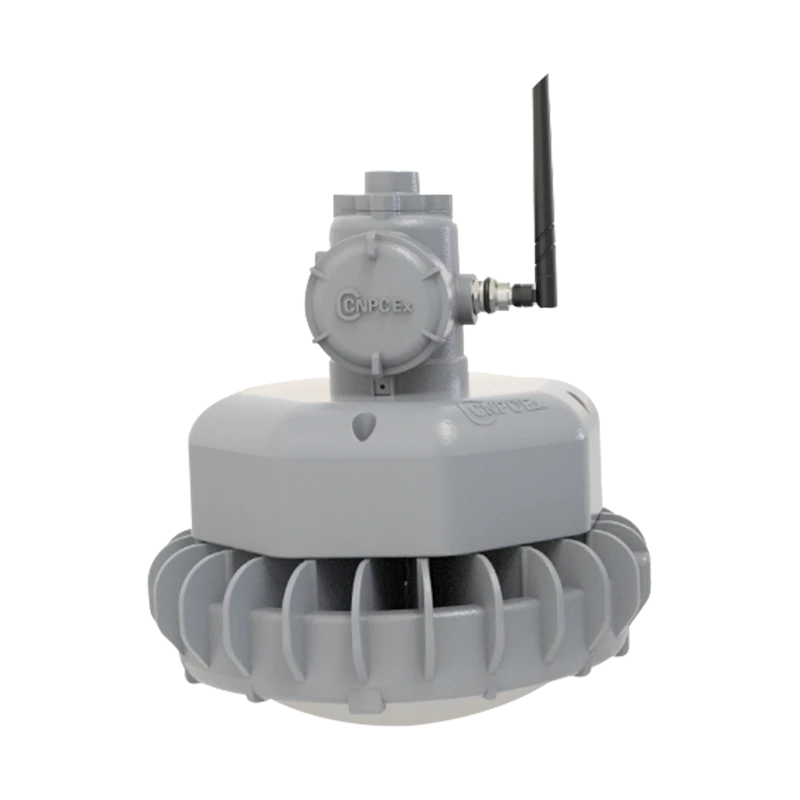

CN125 Smart Explosion-proof LED Light

Product Advantages

Independent LED light source cavity, constant current and constant voltage power supply controller cavity, the wiring cavity is isolated and not connected, adopting air convection heat dissipation structure.

International brand white LED, reasonable arrangement of multiple LEDs, high luminous efficiency and long service life.

Two types of light distribution: Spotlight and Floodlight, optional as required.

Long working life of 100,000 hours, minimal maintenance required.

Technical Parameter

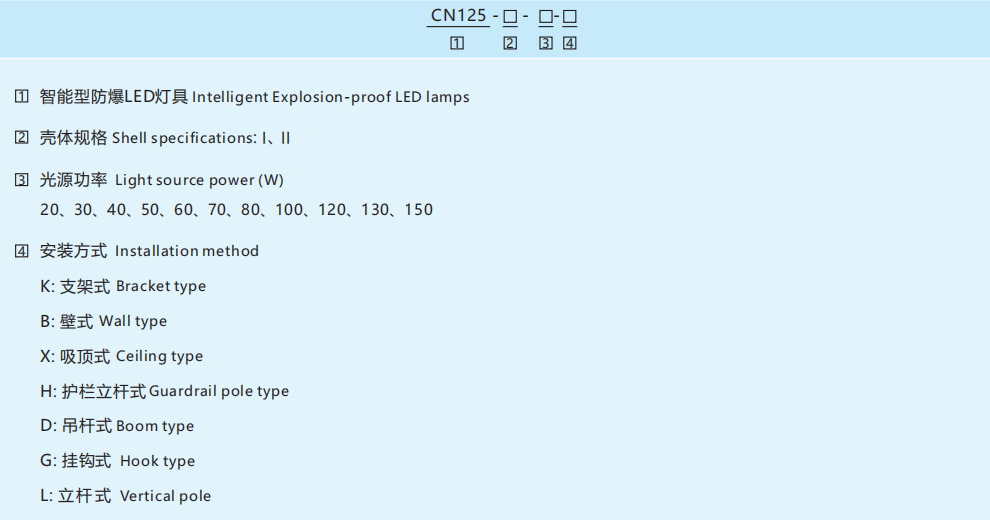

Selection Table

Model/Order code	Light source power(W)	Model/Order code	Light source power(W)
CN125-□II□□	20	CN125-□II□□	80
CN125-□II□□	30	CN125-□II□□	100
CN125-□II□□	40	CN125-□II□□	120
CN125-□II□□	50	CN125-□II□□	130
CN125-□II□□	60	CN125-□II□□	150
CN125-□II□□	70	-	-

CN125-Ⅰ

Item	Specification
Explosion proof type (Gas/Dust)	II2G Ex db IIC T6 Gb / II2D Ex tb IIIC T80 ℃ Db
Executive standard	GB/T 3836.1-2021, GB/T 3836.2-2021, GB/T 3836.31-2021; EN 60079-31, IEC 60079-0, IEC 60079-1, IEC 60079-28, IEC 60079-31
Shell material	Copper-free aluminum, plastic sprayed surface
Glass cover	Tempered glass, 4J impact resistance
Exposed fasteners	Stainless steel
LED drive power	Wide voltage input, constant current and constant voltage output, power factor ≥0.95; with protection functions: shunting, constant current, anti-surge, over current, open circuit, short circuit, anti-electromagnetic interference
Light source specifications	LED module, multiple arrangement
Light source power (W)	20, 30, 40, 50
LED color temperature (CCT)	Cool white light: 5400~6500KNote: The light source of conventional products is cool white light. Warm white (2700~3500K) or natural white (4700~5400K) is customizable, please specify when placing an order.
Rated voltage	AC100~240V
Ground protection	M4 (Grounding screws are equipped inside and outside the lamp housing)
Protection level	IP66
Ambient temperature	-40℃~+55℃
Terminal block	3 x 1.5~4mm² (L+N+PE)
Installation method	Bracket type, hook type, pole type, boom type, wall type, ceiling type
Cable entry	1 x M25 x 1.5 (Hook type, pole type, boom type)2 x M25 x 1.5 (Bracket type)4 x M25 x 1.5 (Wall type, ceiling type)
Cable entry device	Recommend to use CN970-Ⅱ (Ex db) or CN970-Ⅲ (Ex db)

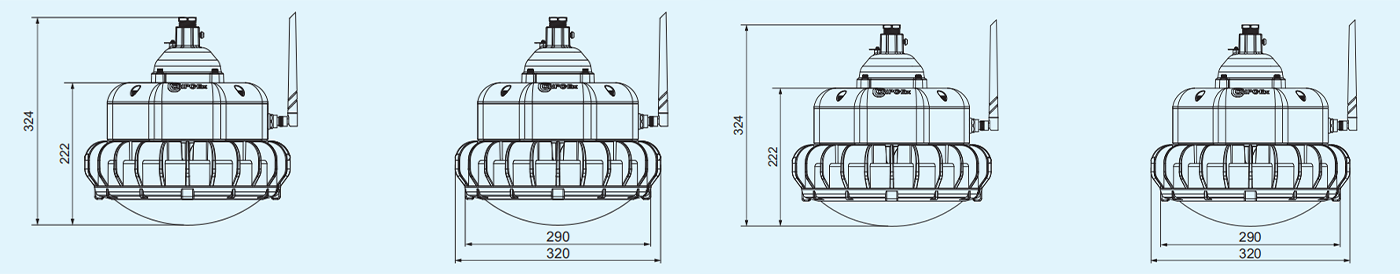

Outline diagram	All dimensions in mm, modifiable

CN125-Ⅱ

Item	Specification
Explosion proof type (Gas/Dust)	II2G Ex db IIC T6 Gb / II2D Ex tb IIIC T80 ℃ Db
Executive standard	GB/T 3836.1-2021, GB/T 3836.2-2021, GB/T 3836.31-2021; EN 60079-31, IEC 60079-0, IEC 60079-1, IEC 60079-28, IEC 60079-31
Shell material	Copper-free aluminum, plastic sprayed surface
Glass cover	Tempered glass, 4J impact resistance
Exposed fasteners	Stainless steel
LED drive power	Wide voltage input, constant current and constant voltage output, power factor ≥0.95; with protection functions: shunting, constant current, anti-surge, over current, open circuit, short circuit, anti-electromagnetic interference
Light source specifications	LED module, multiple arrangement
Light source power (W)	60, 70, 80, 100, 120, 130, 150
LED color temperature (CCT)	Cool white light: 5400~6500KNote: The light source of conventional products is cool white light. Warm white (2700~3500K) or natural white (4700~5400K) is customizable, please specify when placing an order.
Rated voltage	AC100~240V
Ground protection	M4 (Grounding screws are equipped inside and outside the lamp housing)
Protection level	IP66
Ambient temperature	-40℃~+55℃
Terminal block	3 x 1.5~4mm² (L+N+PE)
Installation method	Bracket type, hook type, pole type, boom type, wall type, ceiling type
Cable entry	1 x M25 x 1.5 (Hook type, pole type, boom type)2 x M25 x 1.5 (Bracket type)4 x M25 x 1.5 (Wall type, ceiling type)
Cable entry device	Recommend to use CN970-Ⅱ (Ex db) or CN970-Ⅲ (Ex db)
Outline diagram	All dimensions in mm, modifiable
