CN880 Explosion-Proof Terminal Device

CN880-DL Is mainly used for sealing the end of heat tracing belt. There's working signal indicating when the power is on. It adopts the advanced moisture-proof design for LED light source, and the signal light can be observed at any angle. It owns long service life and stable performance and is maintenance-free, it's fixed on the pipe during installation with insulation layer outside, and wiring accessories are placed in the box.
This product can be used in gas explosion-proof and dust explosion-proof area, also  suitable for non-explosion-proof area.

Technical Parameter

Texture of material

Engineering plastic

Ex proof grade

 II 2G Ex eb mb IIC Gb   Ex eb mb IIC Gb
 II 2D Ex tb IIIC Db          Ex tb IIIC Db

Anticorrosion grade

WF2

Degree of protection

IP67

Installation method

Column type

Rated voltage

180~245V 50Hz

Power waste

3W

Color

Red, Green

Type of light source

LED

Height

218mm

Outer diameter

70mm

Incoming line range

18×6(mm)



Model Definition



CN880

DL

Explosion-proof end devices

LED light source

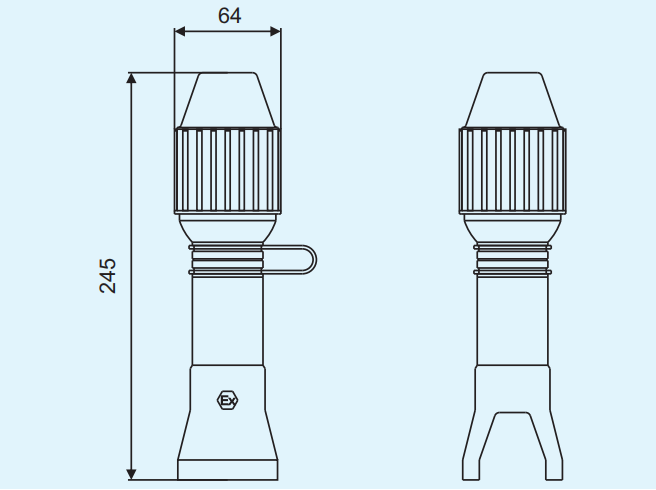

Overall Dimension (mm)

CN880 Explosion-Proof Terminal Device
