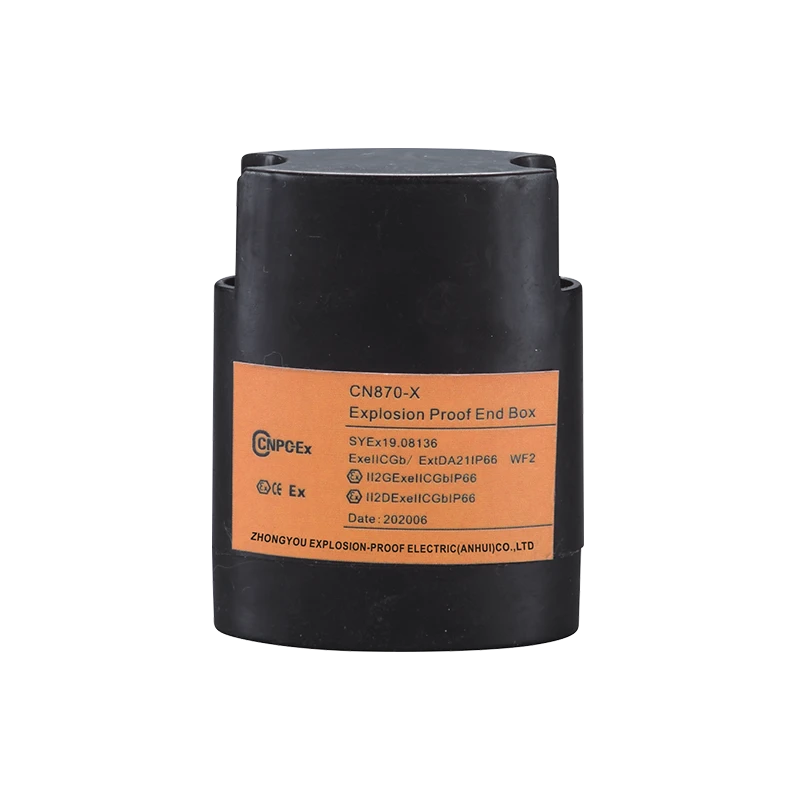

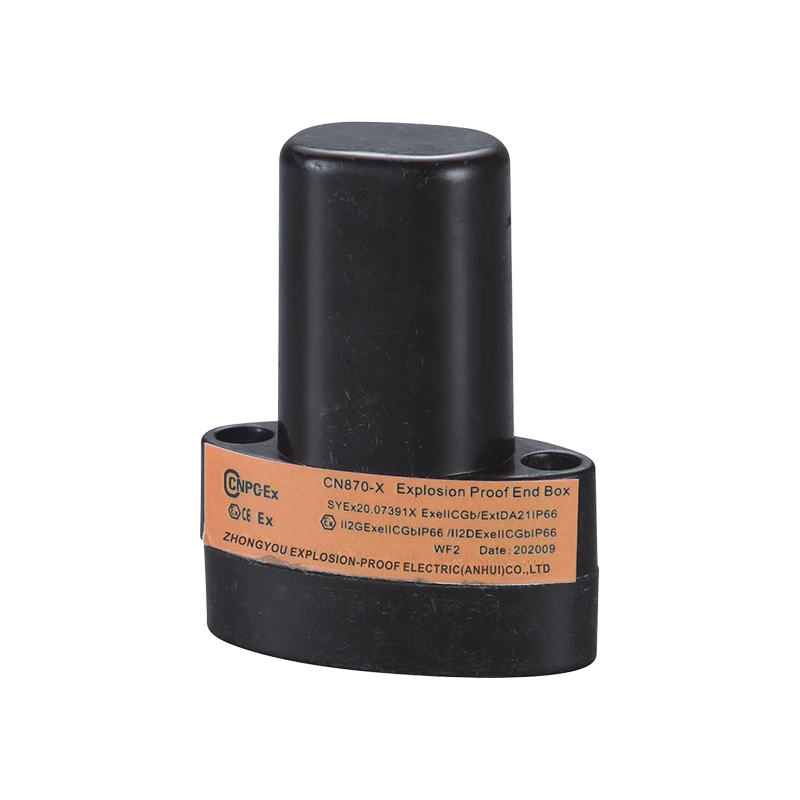

CN870-X Explosion-Proof Terminal Box

CN870-X is mainly used for sealing the end of heat tracing belt, which is fixed on the pipe during installation, with insulation layer outside, and wiring accessories are placed in the box. This product can be used in gas explosion-proof and dust explosion-proof area, also suitable for non-explosion-proof area.

Technical Parameter

Model Definition



CN870

X-100

X-200

Explosion proof end box

Type I

Type II



Texture of material

Engineering plastic

Ex proof grade

 II 2G Ex eb IIC Gb Ex eb IIC Gb
 II 2D Ex tb IIIC Db Ex tb IIIC Db

Anticorrosion grade

WF2

Degree of protection

IP67

Rated voltage

AC380V/220V

Outgoing line range

Electric heating cable 18×6(mm)

Dimensions

61×210(mm)

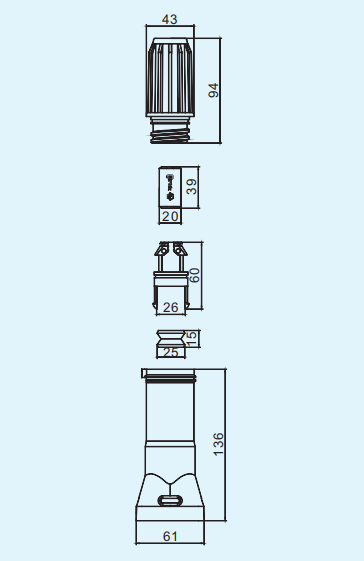

Overall Dimension (mm)
