CN850 Power Junction Box

CN850

100

Explosion proof power junction box

Pipeline type

Texture of material

Engineering plastic

Ex proof grade

II 2G Ex eb IIC T6/T4 Gb Ex eb IIC T6/T4 Gb

II 2D Ex tb IIIC T80℃/T130℃ Db Ex tb IIIC T80℃/T130℃ Db

Anticorrosion grade

WF2

Degree of protection

IP65, IP66

Installation method

Pipeline type

Rated voltage

AC380V/220V

Rated current

30A/60A

Outgoing line range

Electric heating cable 18×6 (mm)

Number of incoming lines

Once in

Cable entry device

G3/4" with CN970 or CN960

Model

Box size (mm)

Number of incoming lines

Number of outgoing lines

Terminal specification

Number of terminals

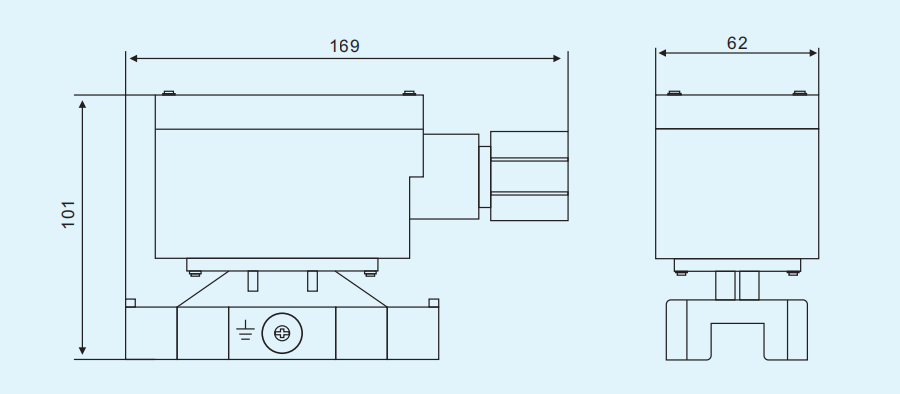

CN850-100

169×100×62

1

2

Copper parts

2+PE

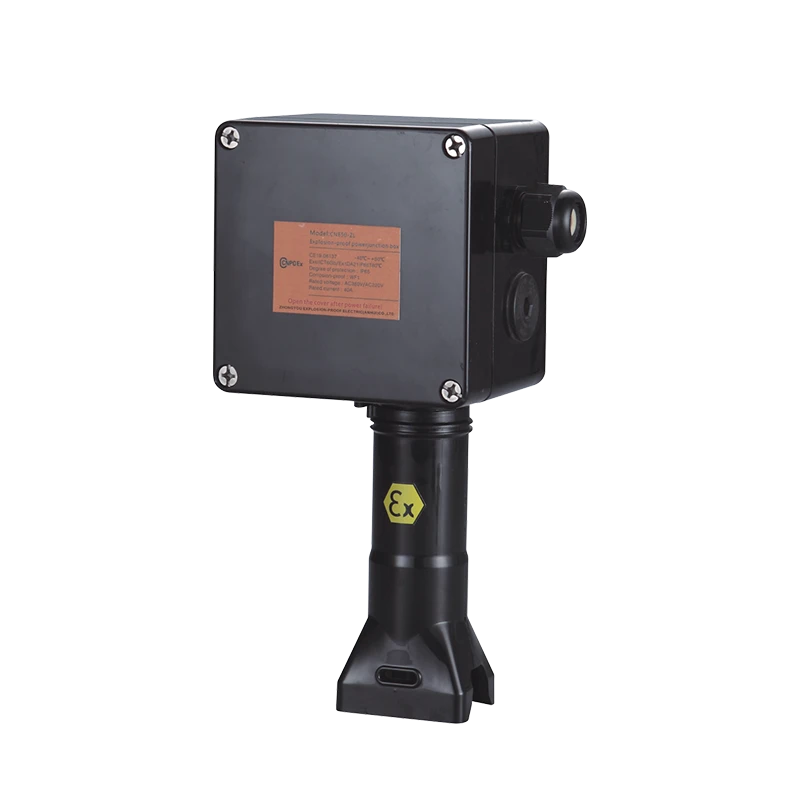

CN850

120Z

Explosion proof power junction box

Column type

Texture of material

Engineering plastic

Ex proof grade

Anticorrosion grade

WF2

Degree of protection

IP65, IP66

Installation method

Column type

Rated voltage

AC380V/220V

Rated current

30A/60A

Outgoing line range

Electric heating cable 18×6 (mm)

Number of incoming lines

One in, two in

Indicator light

Customized if it needs light (red, green)

Cable entry device

G3/4" with CN970 or CN960

Model

Box size (mm)

Number of incoming lines

Number of outgoing lines

Terminal specification

Number of terminals

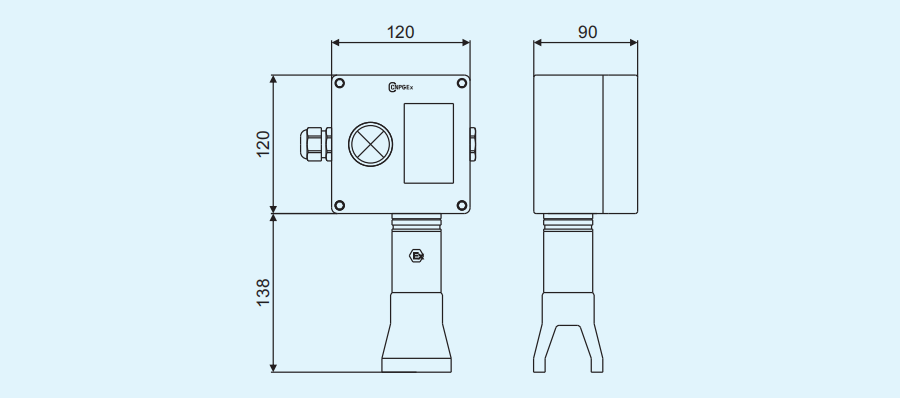

CN850-120Z

120×120×90

1

1

UK-10N

2+PE

CN850-120Z

120×120×90

2

1

UK-10N

2+PE

CN850-120Z

160×160×90

1

1

UK-10N

2+PE

CN850-120Z

160×160×90

2

1

UK-10N

2+PE

CN850-120Z

160×160×90

3

1

UK-10N

2+PE

CN850-120Z

220×130×90

3

2

UK-10N

4+PE

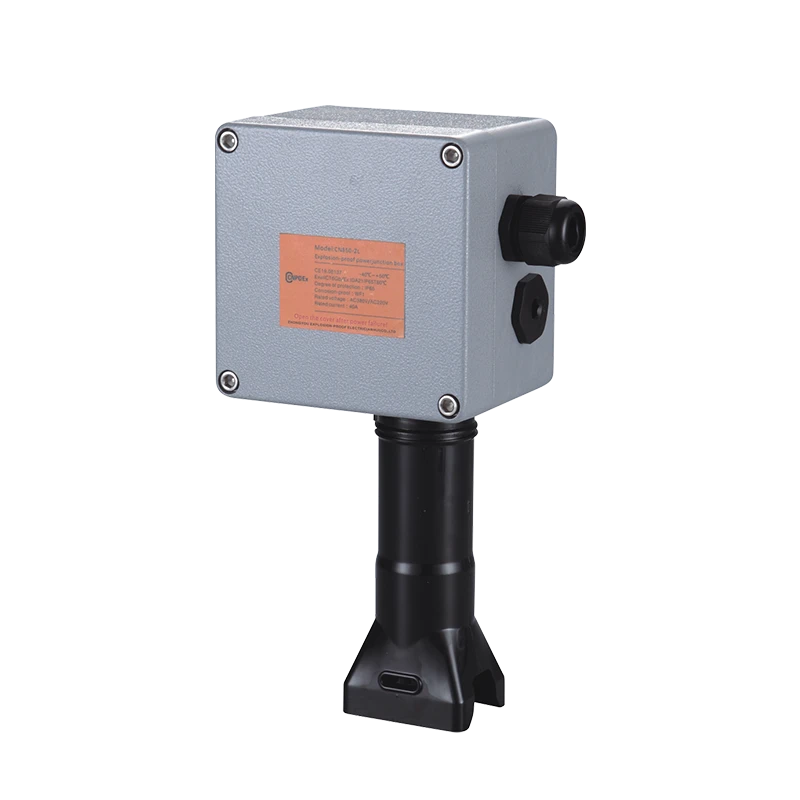

CN850

120Z

Explosion proof power junction box

Bracket type

Texture of material

Aluminum alloy

Ex proof grade

Anticorrosion grade

WF2

Degree of protection

IP65, IP66

Installation method

Bracket type

Rated voltage

AC380V/220V

Rated current

30A/60A

Outgoing line range

Electric heating cable 18×6 (mm)

Number of incoming lines

One in, two in

Indicator light

Customized if it needs light (red, green)

Cable entry device

G3/4" with CN970 or CN960

Model

Box size (mm)

Number of incoming lines

Number of outgoing lines

Terminal specification

Number of terminals

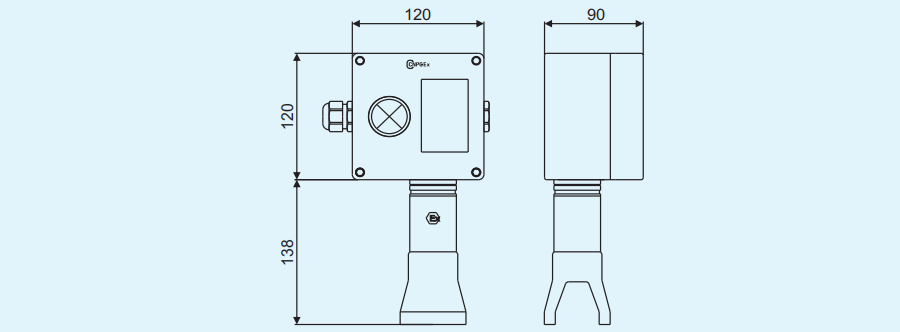

CN850-120Z

120×120×90

1

1

UK-10N

2+PE

CN850-120Z

120×120×90

2

1

UK-10N

2+PE

CN850-120Z

160×160×90

1

1

UK-10N

2+PE

CN850-120Z

160×160×90

2

1

UK-10N

2+PE

CN850-120Z

160×160×90

3

1

UK-10N

2+PE

CN850-120Z

220×130×90

3

2

UK-10N

4+PE

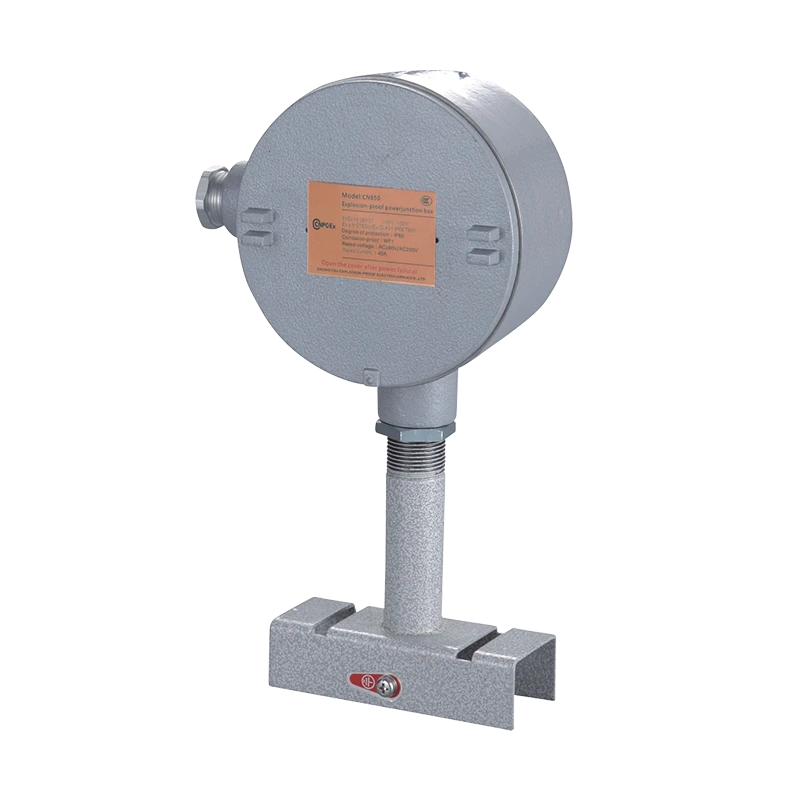

CN850

130CT

Explosion proof power junction box

Bracket type

Texture of material

Aluminum alloy

Ex proof grade

Anticorrosion grade

WF2

Degree of protection

IP65, IP66

Installation method

Bracket type

Rated voltage

AC380V/220V

Rated current

30A/60A

Outgoing line range

Electric heating cable 18×6 (mm)

Number of incoming lines

One in, two in

Indicator light

Customized if it needs light (red, green)

Cable entry device

G3/4" with CN970 or CN960

Model

Box size (mm)

Number of incoming lines

Number of outgoing lines

Terminal specification

Number of terminals

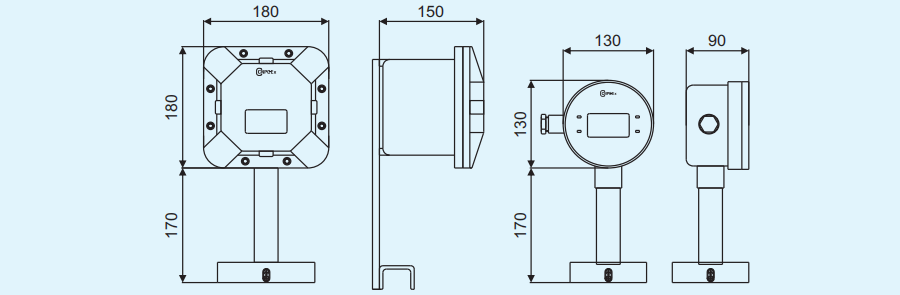

CN850-130CT

180×180×130

1

1

UK-10N

2+PE

CN850-130CT

180×180×130

2

1

UK-10N

4+PE

CN850-130CT

220×180×130

3

2

UK-10N

2+PE

Model

Box size (mm)

Number of incoming lines

Number of outgoing lines

Terminal specification

Number of terminals

CN850-130CT

180×180×130

1

1

UK-10N

2+PE

CN850-130CT

180×180×130

2

2

UK-10N

4+PE

CN850-130CT

240×240×180

3

2

UK-10N

6+PE

CN850-130CT

240×240×180

4

2

UK-10N

6+PE
