CN830 Sensor

CN830

P

M

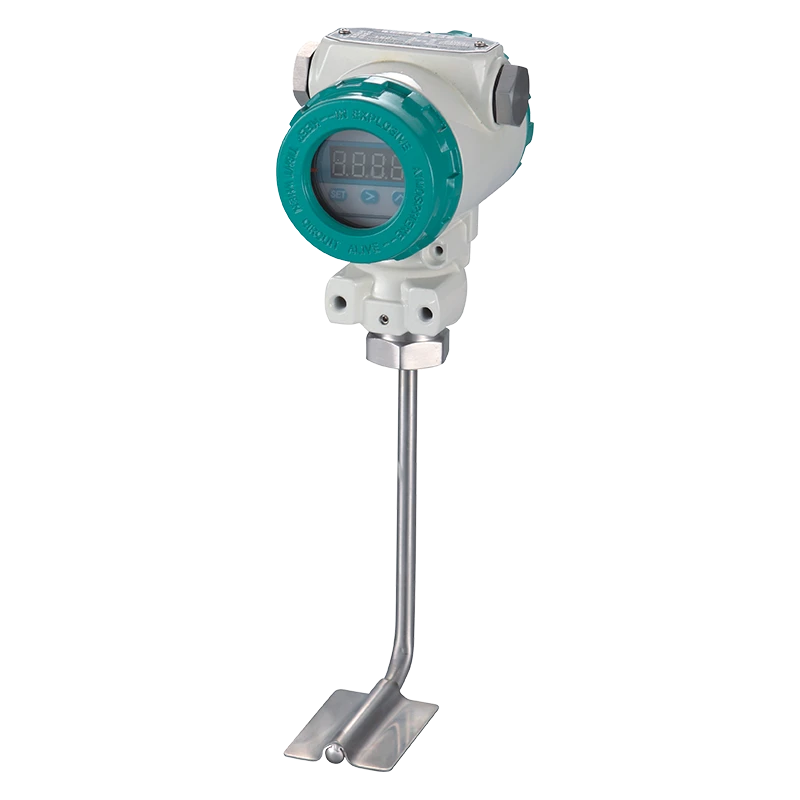

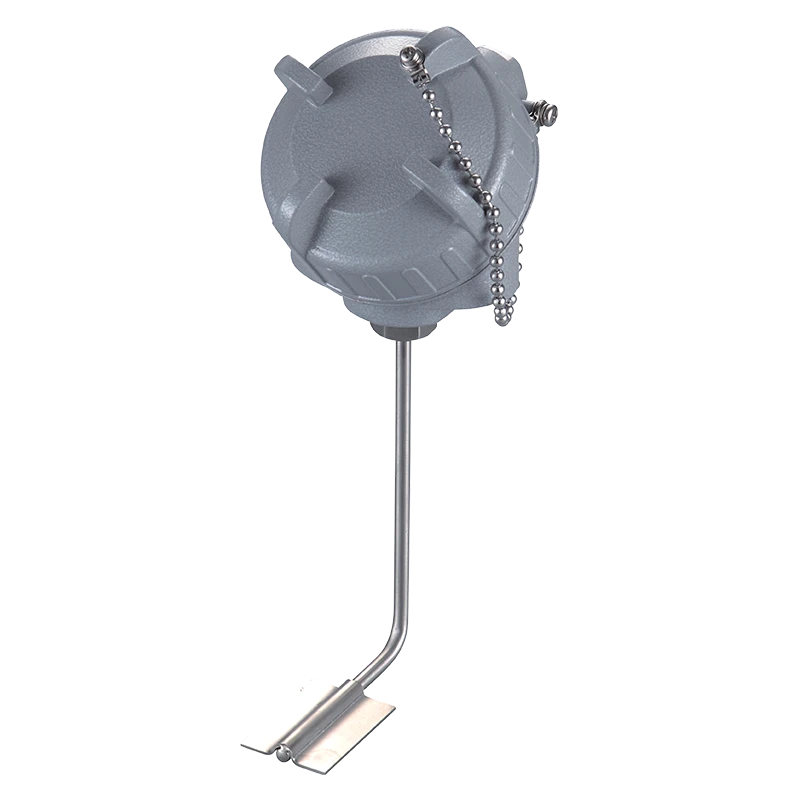

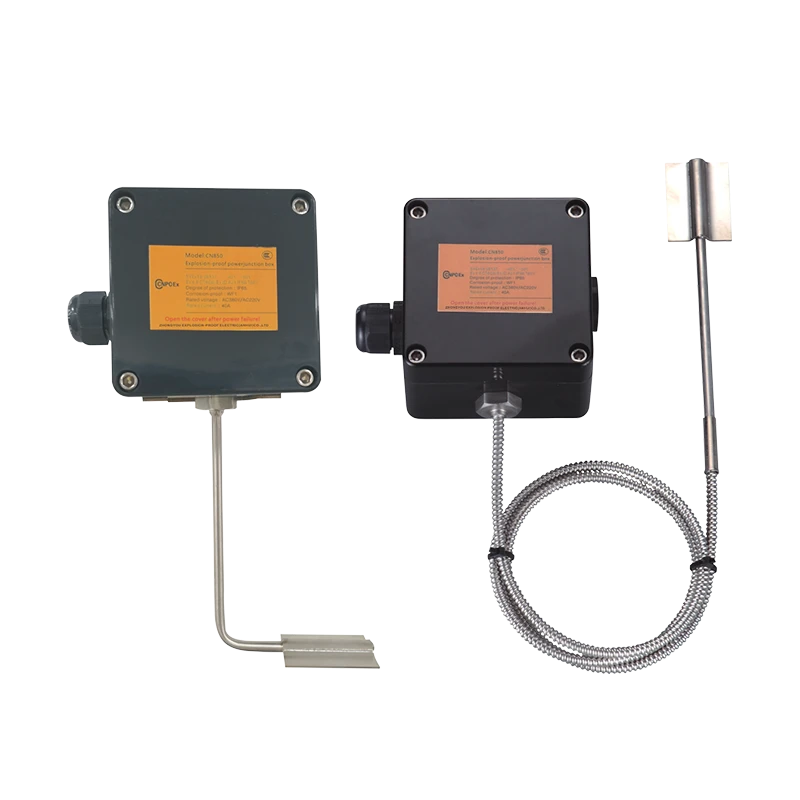

Explosion proof temperature sensor

P:PT100

K:K-type

B:4~20mA(Don't need to note if not)

Item

Option 1

Option 2

Texture of material

Aluminum alloy, stainless steel 304

Engineering plastic

Ex proof grade

II 2G Ex db IIC T6 Gb

II 2D Ex tb IIIC Db

Ex db IIC T6 Gb

Ex tb IIIC T80℃ Db

II 2G Ex eb IIC T6 Gb

II 2D Ex tb IIIC Db

Ex eb IIC T6 Gb

Ex tb T80℃ Db

Anticorrosion grade

WF1, WF2

Degree of protection

IP65, IP66

Installation method

Pipeline type

Measuring range

-50~500℃ / -45~450℃

Measurement accuracy

A-grade German imported chips

Output signal

PT100, K-type, J-type, 4~20mA transmitting output

Cable entry device

M20×1.5 with CN970 or CN960

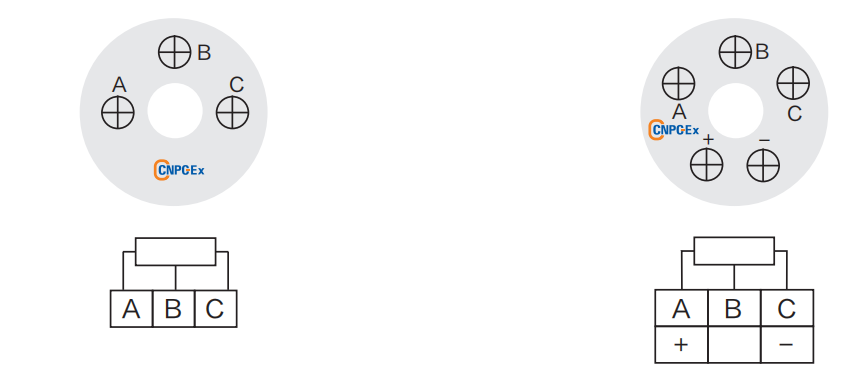

PT100 output

4~20mA transmitting output (passive voltage)

Three-wire system

Two-wire system

Terminal screw M3

Terminal screw M3
