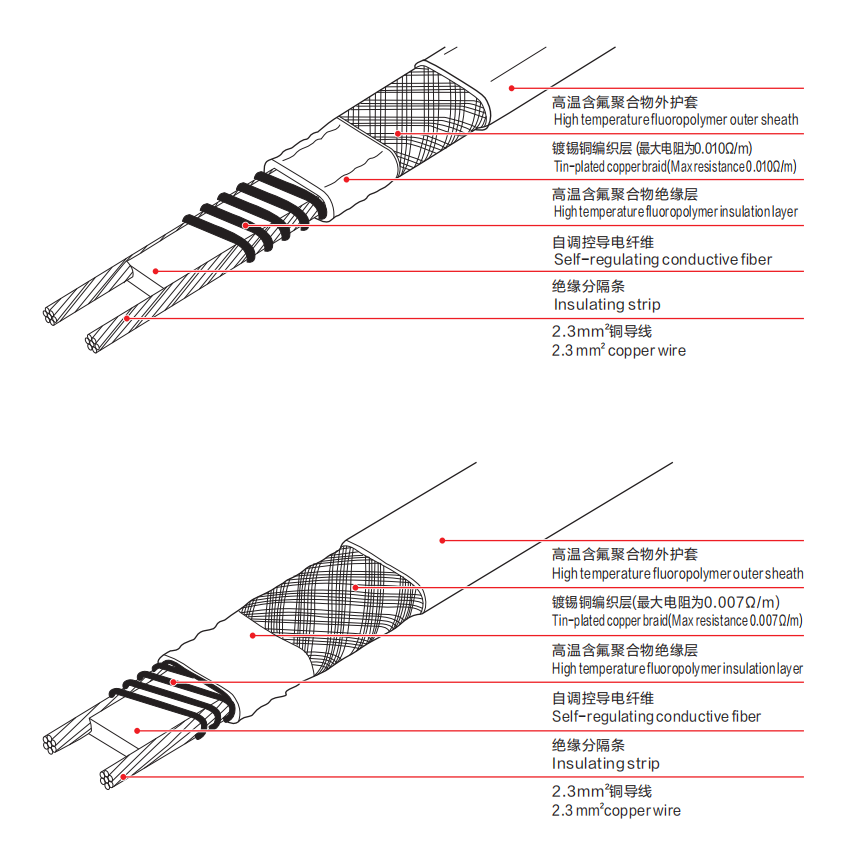

CN8100 Electric Heating Tape

CN8100-Z Explosion-proof automatic temperature and electric tropical is mainly antifreeze insulation, energy saving and environmental protection, no pollution, low installation and operation cost, stable performance, long service life, maintenance-free.

It is used in chemical raw material pipeline, chemical raw material storage tank, oil well head equipment and instrument heat tracing.

It is applicable to zone 1 and zone 2 of explosive gas environment;

It is suitable for 21 and 22 areas of combustible dust environment;

Suitable for IIA, IIB, IIC explosive gas environment;

Applicable to temperature levels of T1~T6 group.

Technical Parameter

CN8100	Z
Explosion-proof automatic thermoelectric tropical zone	Self-controlled temperature

CN8100-Z Explosion-proof automatic thermoelectric tropical zone

Item	Value
Ex proof grade	II 2G Ex ec IIC T4 Gc
Rated voltage	AC380V/AC220V/AC110V/AC36V/AC24V
Rated power	10W/m, 20W/m, 30W/m, 40W/m, 50W/m, 60W/m
Anticorrosion grade	WF2, WF1
Degree of protection	IP65, IP66
Cable outer diameter	10~14mm
Exposure temperature	65℃
Ultimate installation temperature	-60℃
Minimum bending radius	At 20℃ Time: 13mm; -60℃ Time: 35mm

Matching table

Model	Rated power (W)	Initial temperature (℃)	Maximum circuit length of type C circuit breaker (m)
Model	Rated power (W)	Initial temperature (℃)	16A	20A	25A	32A
CN8100-ZLow temperature type	9	-20	155	195	200	200
	9	+10	200	200	200	200
	16	-20	110	140	160	160
	16	+10	160	160	160	160
	25	-20	70	90	110	125
	25	+10	110	125	125	125
	29	-20	45	55	70	90
	29	+10	65	85	105	110

Model	Rated power (W)	Initial temperature (℃)	Maximum circuit length of type C circuit breaker (m)
Model	Rated power (W)	Initial temperature (℃)	25A	32A	40A
CN8100-ZMedium temperature type	38	-20	95	115	115
	38	+10	115	115	115
	51	-20	75	100	100
	51	+10	95	100	100
	64	-20	60	75	95
	64	+10	75	95	115

Note: the above is the rated output power of AC220 V on the insulation pipe
