CN810/8110 Intelligent Explosion-Proof Temperature Controller

CN8110-M Series is mainly used to control explosion-proof electric tracing belt, which is suitable for single-loop pipeline freezing prevention and process maintenance.

Internal equipped with explosion-proof temperature control module developed by our company, quick installation, convenient operation, reliable performance, long service life, maintenance free.

Functions: temperature alarm, remote communication, DCS signal can be uploaded to the control room for remote control;

Used in chemical raw material pipelines, chemical raw material storage tanks, oil production wellhead devices, instrument heat tracing control.

Technical Parameter

CN8110

M

Intelligent Explosion proof temperature controller

Modular



Item

English

Texture of material

Engineering plastic

Ex proof grade

 II 2G Ex db eb IIC T6 Gb Ex db eb IIC T6 Gb
 II 2D Ex tb IIIC T80℃ Db Ex tb IIIC T80℃ Db

Rated voltage

AC220V

Rated current

25A, 40A, 60A

Instrument configuration

CN Series

Input type

Thermal resistance PT100, thermocouple K-type, J-type, T-type, etc

Type of output

RS485 Communication, 4 ~ 20mA current transmitting

Alarm type

Sensor disconnection alarm and overtemperature alarm

Feedback signal

Operation, high and low temperature

Control mode

One control one way, one control multiple-way

Degree of protection

IP65, IP66

Anticorrosion grade

WF2

Installation method

Pipeline type

Lead in device

G1/2" with CN970 or CN960

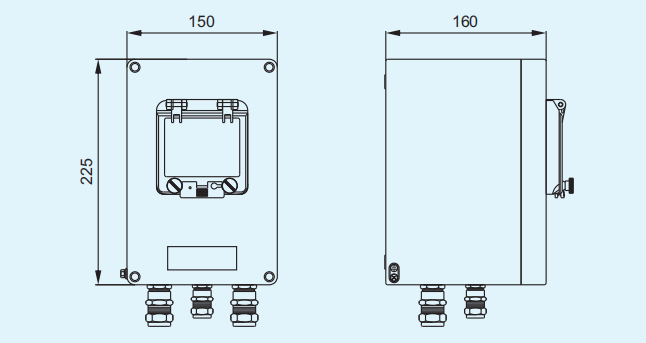

Overall Dimension (mm)

CN810/8110 Intelligent Explosion-Proof Temperature Controller
