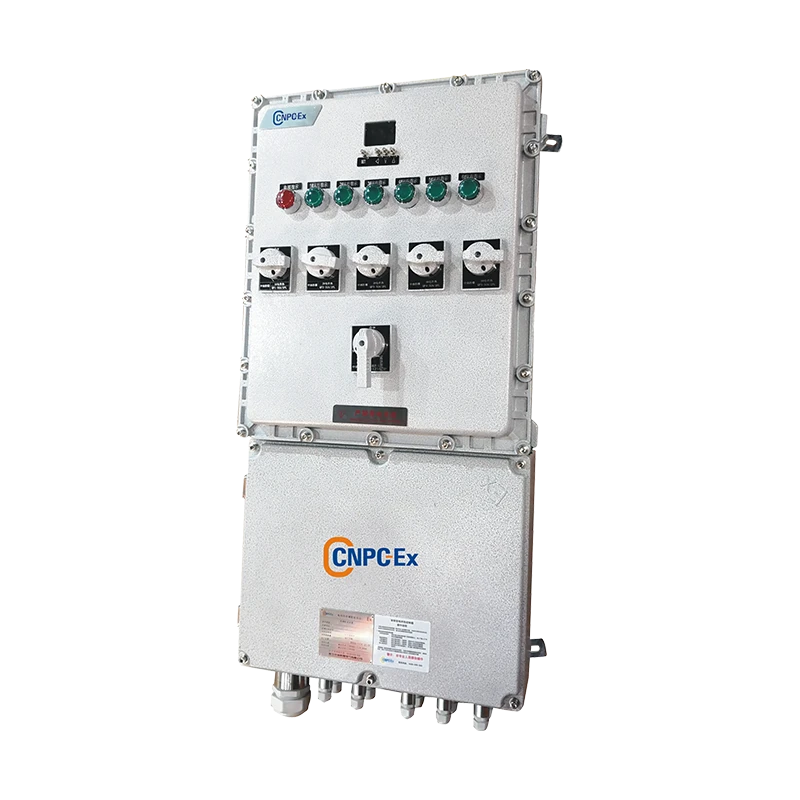

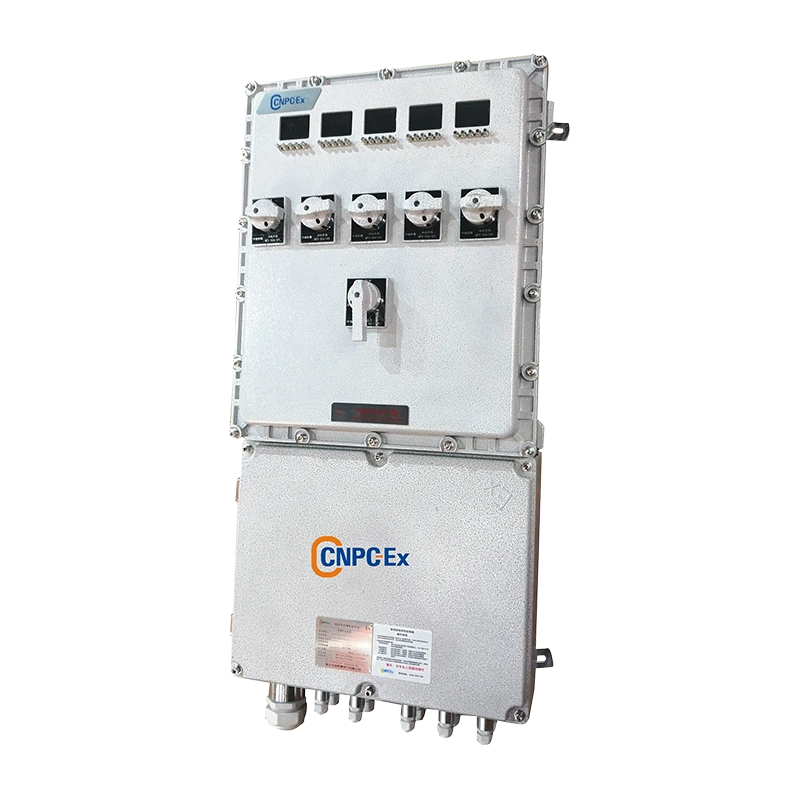

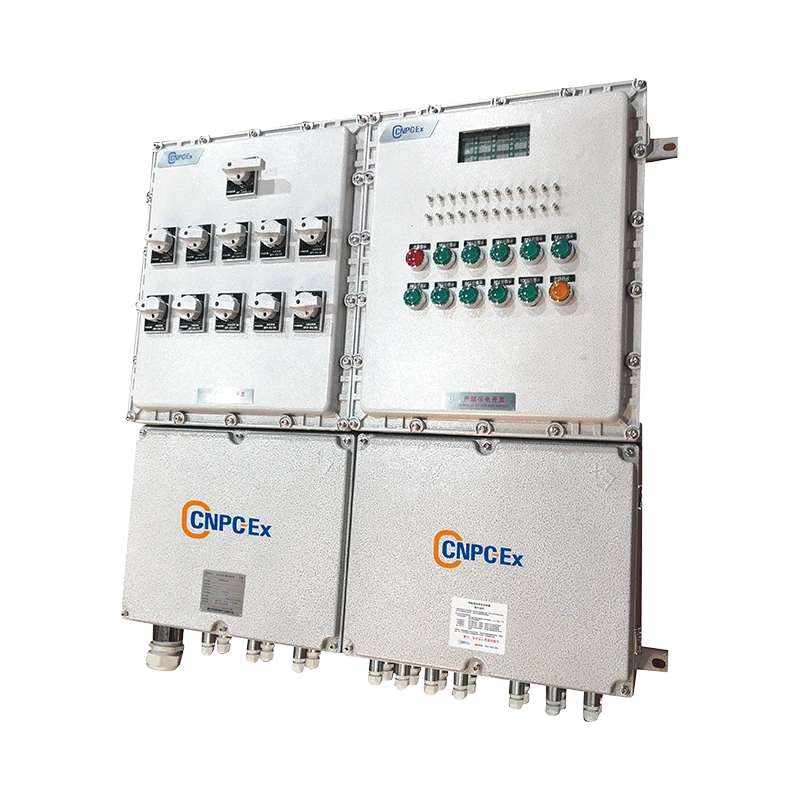

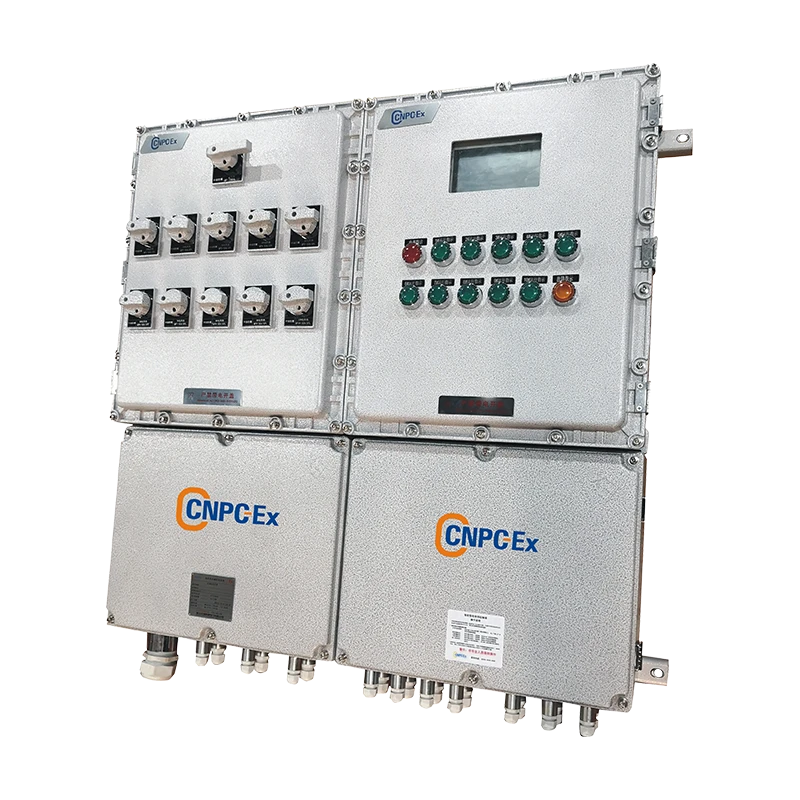

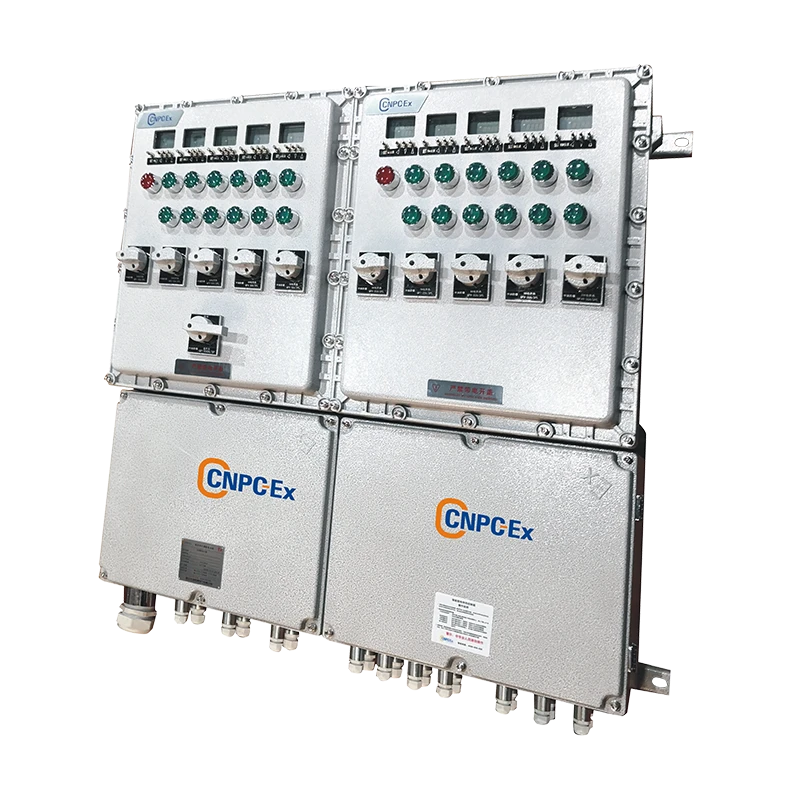

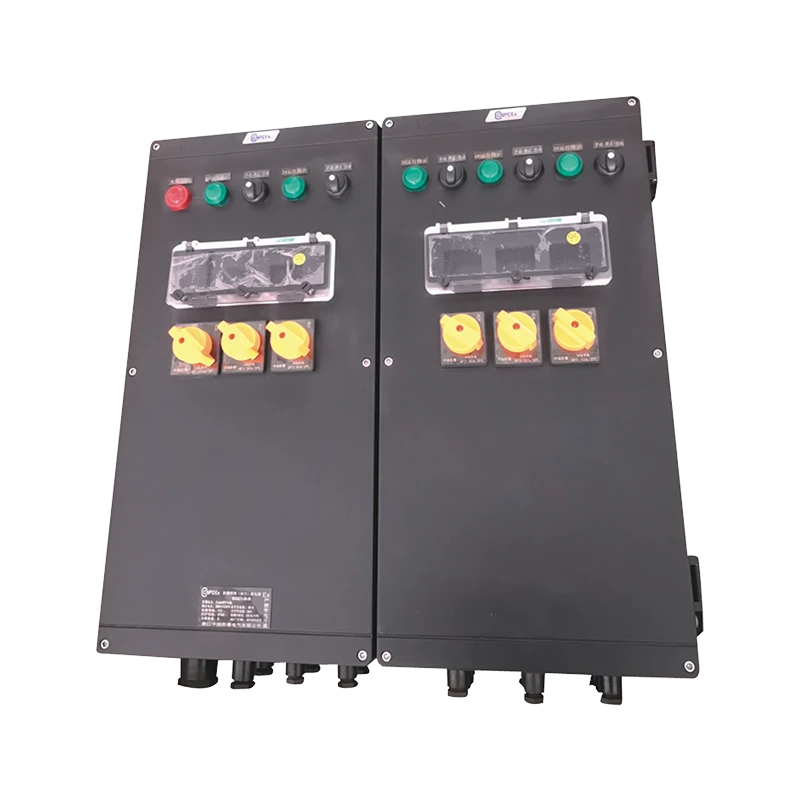

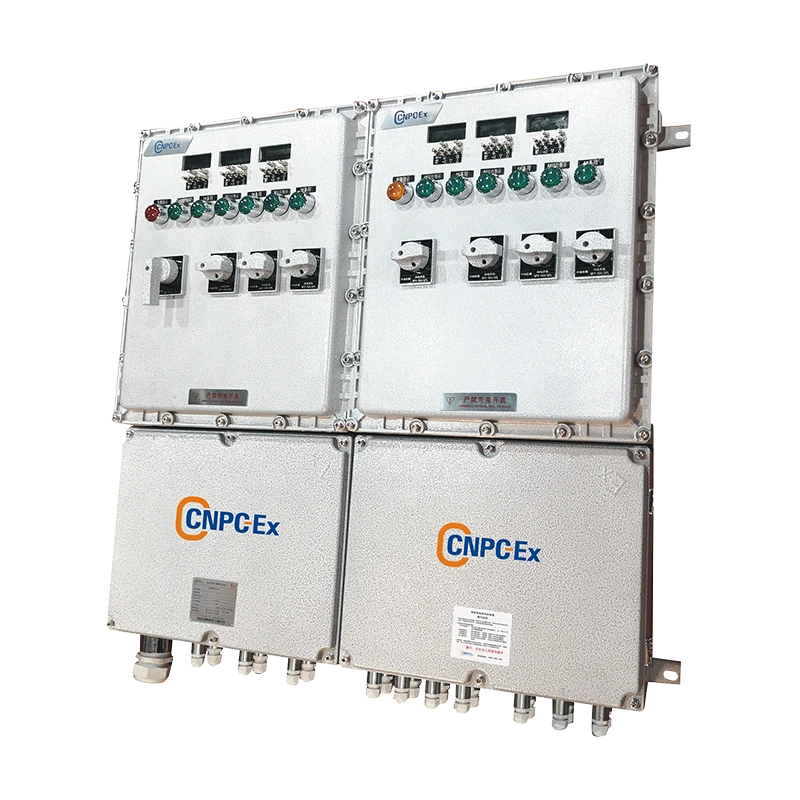

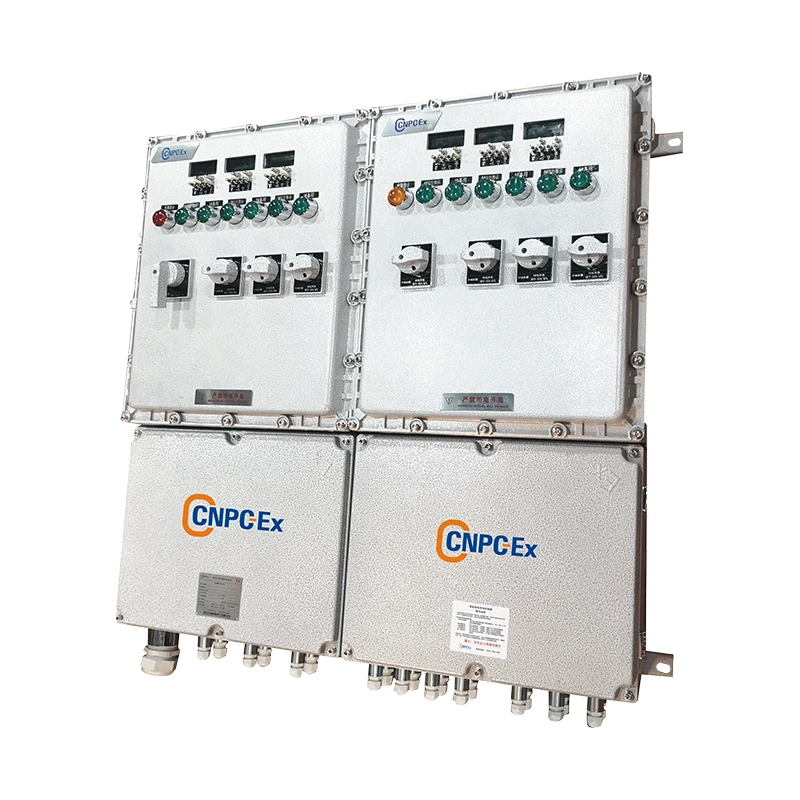

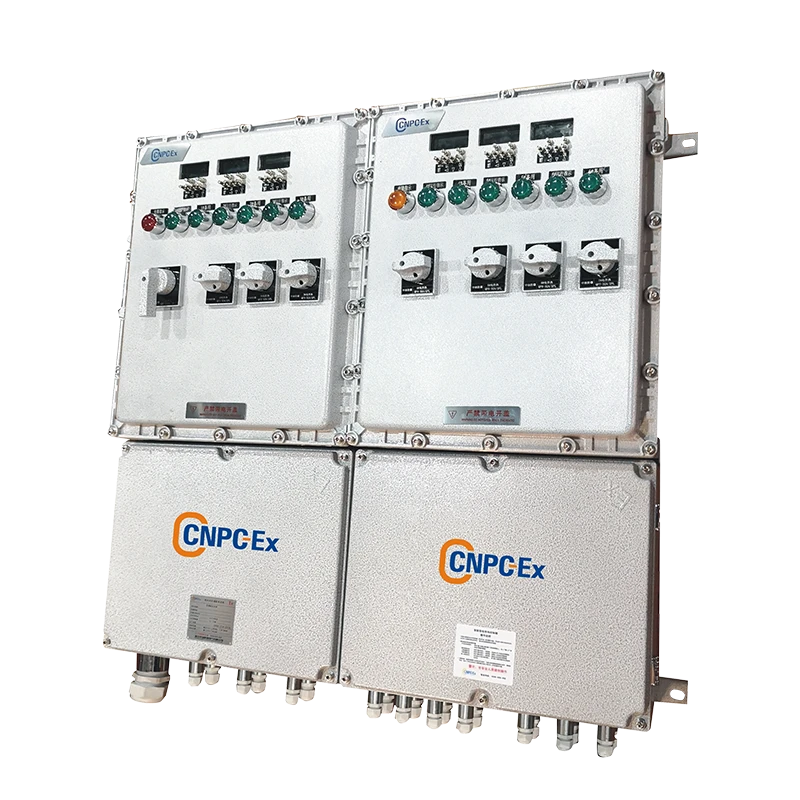

CN800 Intelligent Explosion-Proof Temperature Control Distribution Box

CN800-Z Series is mainly used to control the explosion-proof automatic temperature control electric tracing belt, which is suitable for the process requirements of multiple-channel antifreezing pipelines.

Functions: electric leakage, short circuit, phase loss, wire disconnection, upper and lower limit alarm, remote communication, voltage and current display, current transmitting output, DCS signal can be uploaded to the control room for remote control;

Control mode is classified into two functions:Z:-multi-channel temperature control, automatic hand control;ZT: temperature display only without control.

It is used in chemical raw material pipeline, chemical raw material storage tank, oil production wellhead device, instrument and other temperature heat tracing.

It is suitable for zone 1 and zone 2 of explosive gas environment;It is suitable for 21 and 22 areas of combustible dust environment;Suitable for IIA, IIB, IIC explosive gas environment;Applicable to temperature levels of T1~T6 group.

Technical Parameter

Executive standard	GB3836.1, GB3836.2, GB3836.3, GB12476.1, GB12476.5, IEC60079-0, IEC60079-1, IED60079-7, IEC61241-0, IEC61241-1, EN60079-1, EN60079-7, EN61241-0, EN61241-1
Ex-mark	II2G Ex db eb IIB Gb II2G Ex db IIB Ex db eb IIB T4/T6 Gb Ex db IIB T4/T6 Gb II2G Ex db eb IIC II2G Ex db IIC Exdb eb IIC T4/T6 Gb Ex db IIC T4/T6 Gb II2D Ex tb IIIC T130℃/T80℃ Db Ex tb IIIC T130℃/T80℃ Db
Rated voltage	AC36V/AC220V/AC380V
Main circuit current	≤125A 160≤I≤225A 250≤I≤630A
Branch current	10A, 16A, 20A, 25A, 32A, 40A, 50A, 60A, 80A, 100A, 125A (With leakage of 30mA, 300mA)
Degree of protection	IP65, IP66
Anticorrosion grade	WF1, WF2
Electrical configuration	Schneider full range products or domestic first-line products
Instrument configuration	CN-TL Series or omron series products
Input type	Thermal resistance PT100, thermocouple K type, J type, T type, etc
Type of output	RS485 Communication, 4 ~ 20mA current transmitting
Alarm type	Sensor disconnection alarm, leakage alarm, switch alarm, upper and lower limit alarm, fault alarm
Feedback signal	Leakage, switching value, stop operation, high and low temperature
Control mode	One control multi-way
Lead in device	The specification of lead-in device is G1/2"~G4", other specifications can be customized

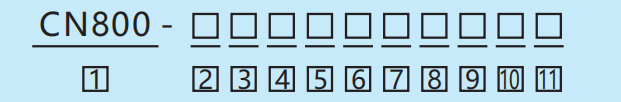

Selection table

Model and specification	Number of branches	Rated current of main circuit (A)	Rated current of branch (A)	Outer diameter of main circuit inlet cable (mm)	Outer diameter of branch circuit outlet cable (mm)	Outer diameter of sensor outlet cable (mm)
CN800-□K40F32	3	40	32	G1 1/4" 15~23	G3/4" 10~14	G1/2" 8~10
CN800-□K63F32	6	63	32	G1 1/4" 15~23	G3/4" 10~14	G1/2" 8~10
CN800-□K125F32	7	125	32	G1 1/2" 18~33	G3/4" 10~14	G1/2" 8~10
CN800-□K125F32	8	125	32	G1 1/2" 18~33	G3/4" 10~14	G1/2" 8~10
CN800-□K125F32	9	125	32	G1 1/2" 18~33	G3/4" 10~14	G1/2" 8~10
CN800-□K160F32	10	160	32	G2" 26~43	G3/4" 10~14	G1/2" 8~10
CN800-□K160F32	11	160	32	G2" 26~43	G3/4" 10~14	G1/2" 8~10
CN800-□K160F32	12	160	32	G2" 26~43	G3/4" 10~14	G1/2" 8~10

Note: the above configuration is conventional.

Ordering instructions

When ordering, customers can design the number and current of the circuit of the explosion-proof box according to the requirements of the pipeline process. If you need voltage and current multifunctional instrument or other functions, please specify separately;

The input type (conventional PT100) should be indicated if it's with temperature control, the output type include 4~20mA current transmitting output and RS485 communication, and it's not indicated if there's no such function.

Aluminum alloy is commonly used material when ordering, please indicate if you need other materials.
