CN Stainless Steel

The box specifications and functions can be customized according to the instrument size, working temperature and installation environment.

Share:
Inquire Now Next Products

Product Advantages

01

Strong Adaptability

The box specifications and functions can be customized according to the instrument size, working temperature and installation environment.

02

High Stability

High temperature control accuracy and good sealing effect of the insulation layer ensure long-term stable operation of the instrument.

03

Sufficient Safety

The material meets industrial protection standards, and the explosion-proof type has passed Ex certification, meeting safety requirements in special scenarios.

04

Convenient Maintenance

Modular design, easy replacement of accessories, and large door opening angle facilitate instrument maintenance.

Product Application Scenarios

Outdoor low-temperature environments: Prevent instrument accuracy degradation of instruments due to icing and low temperatures (such as pressure gauges in northern oil fields and outdoor pipelines).



High-temperature workshops: Avoid instrument aging and circuit burnout caused by high temperatures (such as transmitters in metallurgical plants and near boilers).



Corrosive environments: Protect instruments from erosion by acid-base gases and humidity (such as chemical workshops and electroplating plants).



Explosive environments: Explosion-proof insulation boxes are suitable for scenarios with explosion-proof requirements such as gas stations and chemical storage tank areas.

Technical Parameter

Instrument insulation box (Stainless steel)

 CN

Explosion proof type

Ex II2G Ex db IIC T6 Gb, Ex ia IIC T6 Gb

Gas explosion proof type

Dust explosion proof type

Product material

 304 Stainless steel

Insulation layer material

 Polyurethane foam, rock wool

Thickness of the insulation layer

 20mm, 30mm, 40mm, 50mm

Temperature control type

 Heating type, cooling type, constant temperature type (Heating+cooling)

Temperature control range

 Heating type 5℃ to 25℃; Cooling type 0℃ to 15℃ (Can be formulated)

Protection grade

 IP54, IP65, IP66

Box size (mm)

 300×200×200mm, 400×300×300mm, 500×400×400mm (Can be formulated)

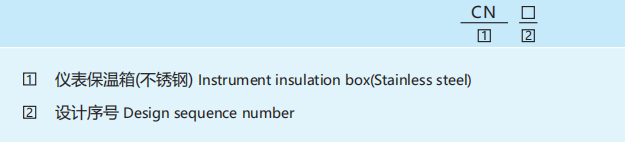

Model Meaning

CN Stainless Steel

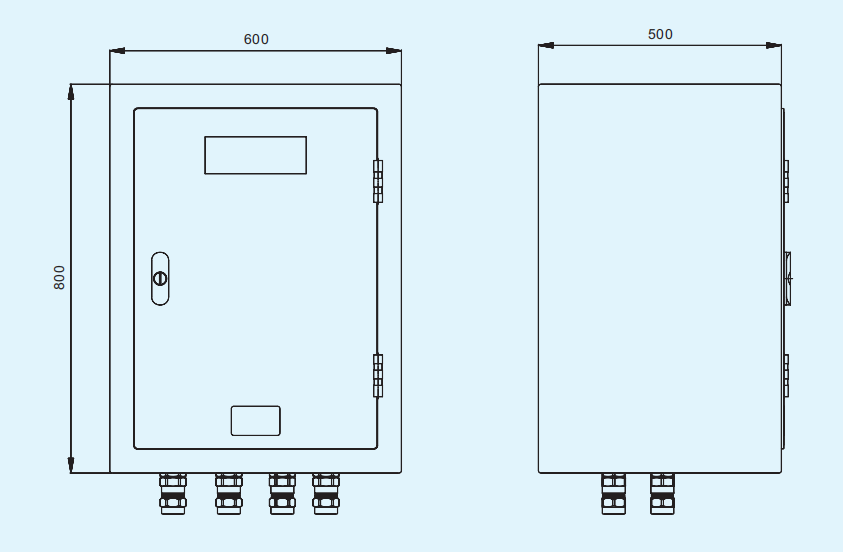

Schematic Diagram of Shape

CN Stainless Steel
