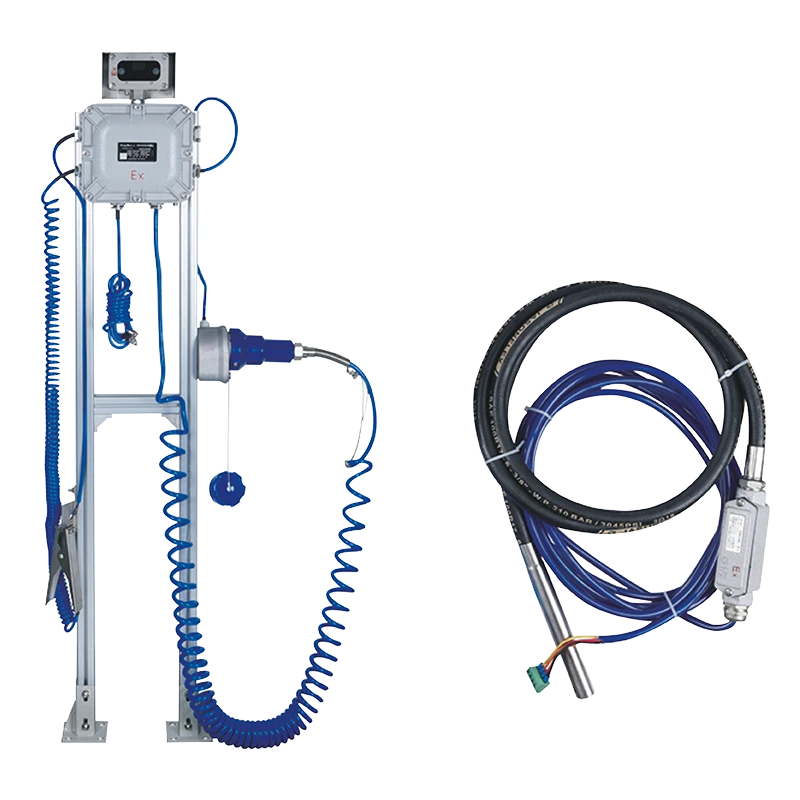

CN1111 One-Piece Top-And-Bottom Design, Anti-Overflow And Anti-Static Controller

Effectively prevent liquid overflow and ensure that the electrostatic grounding resistance meets the safety standards

Technical Parameter

Electrical parameters

Operating voltage

 AC220V/24V

Working current

 <20mA

Operating temperature

 -40℃~60℃

Explosion-proof grade

 Ex dia IIB T6 Gb

Response time

 <1S

Bolt resistance

 ≤10Ω

Protection level

 IP65

Executive standard

 API

Alarm method

 Voice and light alarm

Output signal

 Relay output switch signal, no source contact, normally open and normally closed optional, the interface capacity is 5A/30VDC or 10A/250VAC.

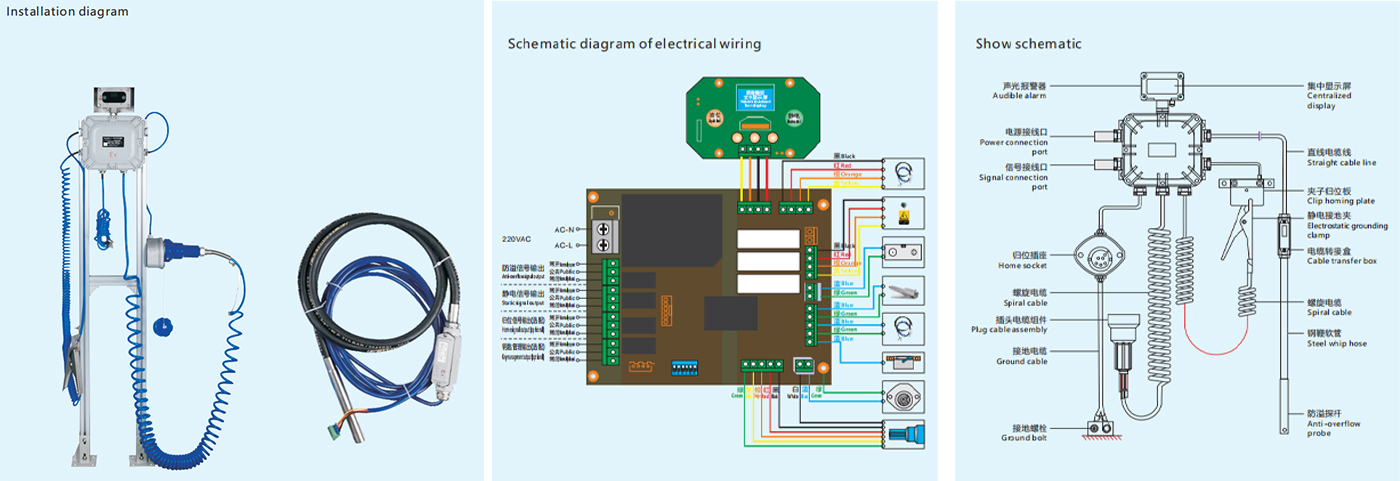

Accessories

Main controller

 Size 210×230, including circuit board, voltage 220VAC

Audible alarm

 Including circuit board, voice and light alarm indication

Plug cable assembly

 API plug+10m PU spiral cable

Home socket

 Conforms to API standards

Ground cable

 3m PU straight cable, installation bolt

Anti-overflow probe

 2m steel whip hose+5m PU straight line

Electrostatic grounding clamp

 Stainless steel clip body+8m PU spiral cable

Clip homing plate

 Insulation pad + stainless steel homing plate



The appearance, technical parameters, performance and characteristics of the machine are subject to change without notice. Reprinting or dissemination of relevant materials is not allowed without the express written permission of the company.
