CN1111 Anti-Overflow And Anti-Static Controller

Home > Products > Human Body Electrostatic Discharge Device > CN1111 Anti-Overflow And Anti-Static Controller

CN1111 Anti-Overflow And Anti-Static Controller

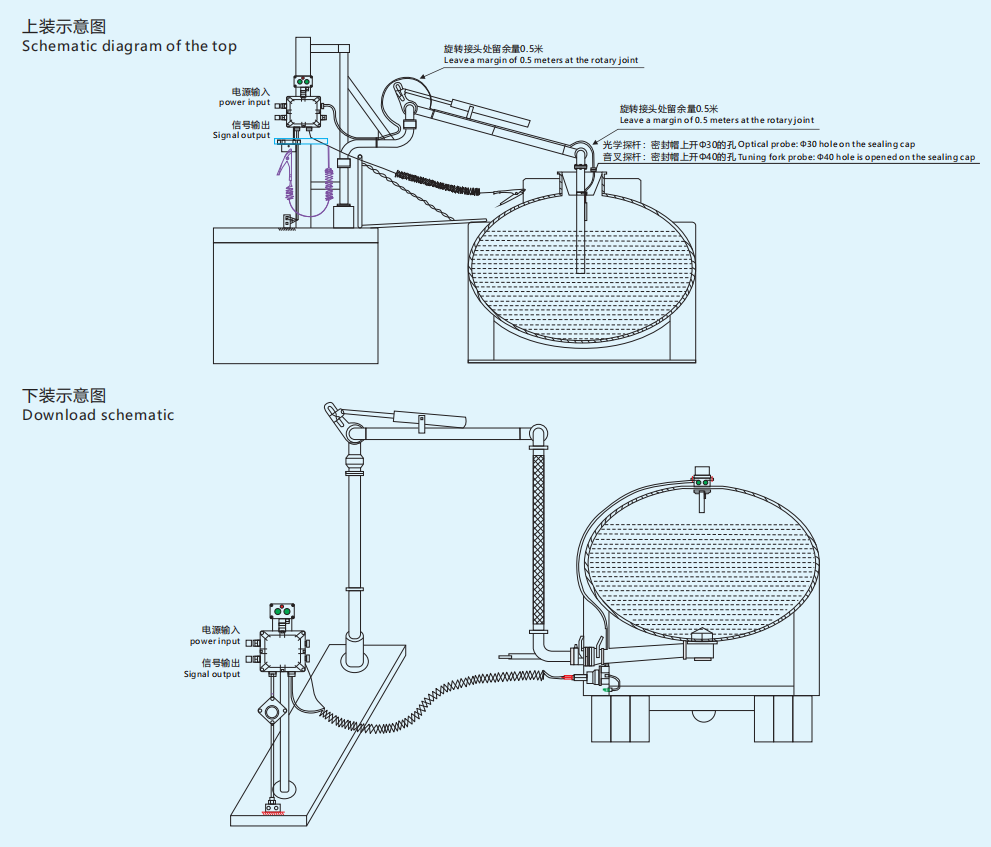

The anti-overflow and anti-static controller is specially designed for the tank truck oil payment system. It can effectively prevent the liquid from overflowing and ensure that the electrostatic grounding resistance meets the safety standards. It constitutes an anti-overflow and anti-static system during the storage and transportation of petrochemical products.

Share:

Inquire Now Next Products

Product Advantages

01

Integrated top and bottom

02

Bottom loading

03

Optical type

04

Tuning fork type

05

Anti-static controller

Product Description

The anti-overflow and anti-static controller has been inspected by the petroleum and chemical industry electrical products explosion-proof quality supervision and inspection center and meets the following standards:

GB3836.1-2010 Explosive atmosphere part 1: general requirements for setting I

GB3836.2-2010 Explosive atmosphere part 2: equipment protected by flameproof enclosure "d"

GB3836.4-2010 Explosive atmosphere part 4: equipment protected by intrinsically safe "i"

The Explosion-proof mark of the product is Ex dia IIB T6 Gb.

Technical Parameter

	Indicator light	Voice system	Working status	Signal output	Remark
Liquid Level	Red light	Ring	Call the police	Disconnect	The detection liquid level reaches the position of the anti-overflow lever
	Green light	No sound	Normal	Closure	The detection liquid level does not reach the alarm position of the anti-overflow control lever
	Yellow light	No sound	Dormant	Disconnect	The main controller goes to sleep
	Flashing	Ring	Fault	Open/close	Sound and light alarm and main controller communication failure
Static Electricity	Red light	Ring	Call the police	Disconnect	Poor electrostatic grounding or ground loop resistance>10Ω
	Green light	No sound	Normal	Closure	Good electrostatic grounding or grounding loop resistance ≤10Ω
	Yellow light	No sound	Dormant	Disconnect	The main controller goes to sleep
	Flashing	Ring	Fault	Open/close	Sound and light alarm and main controller communication failure
