CN02101 Stainless Steel Combination Eye Wash Station

Eyewash nozzle—made of stainless steel, equipped with a stainless steel filter net, can form a soft bubble water flow, more effectively flush the harmful substances in the eyes quickly, and at the same time reduce the damage to the eyes again.

Technical Parameter

1. Eyewash nozzle—made of stainless steel, equipped with a stainless steel filter net, can form a soft bubble water flow, more effectively flush the harmful substances in the eyes quickly, and at the same time reduce the damage to the eyes again.
2. Valve—The punching valve is a 1"304 stainless steel ball valve. The punching valve is a 1/2" 304 stainless steel ball valve.
3. Pipe material—the whole body is made of corrosion-resistant 304 stainless steel.
4. Water inlet and outlet—both are 1 /4" inch internal threads.
5. Water pressure—0.2MPA~0.8MPA.
6. Water source—clean domestic water.
7. Use environment—places where hazardous materials splash,polluted Environments,a place where explosion or combustion may occur.

★ Optional foot pedal device
★ 316 stainless steel material can be customized according to requirements

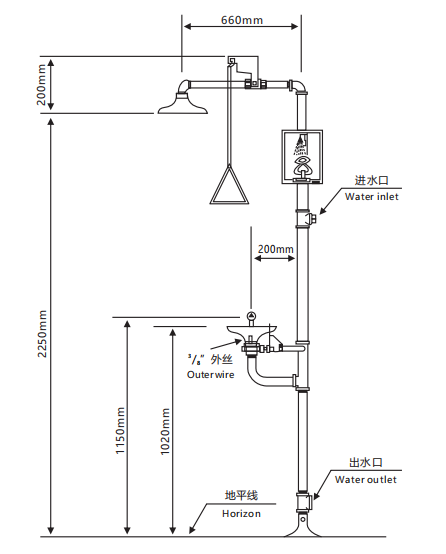

Compound eyewash installation diagram
